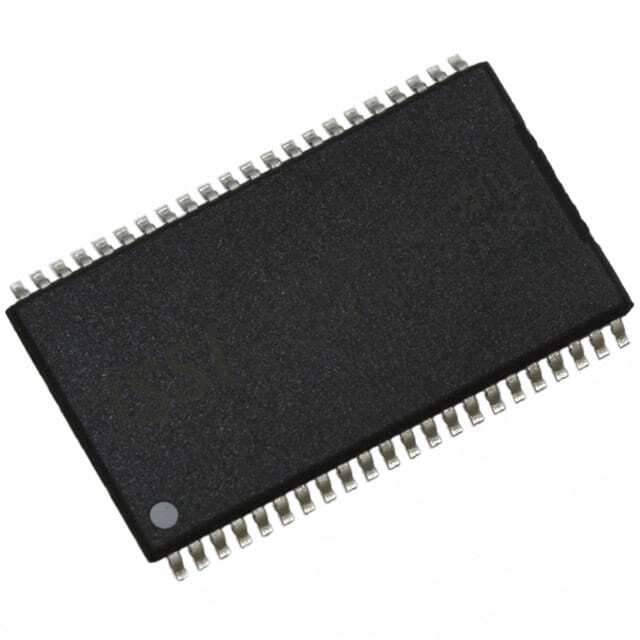

IS64WV20488BLL-10CTLA3

SKU: 51837

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Async Single 2.5V/3.3V 16M-bit 2M x 8 10ns Automotive 44-Pin TSOP-II

1240 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.2.a.
Part Status	Active
HTS	8542.32.00.41
Automotive	Yes
PPAP	Yes
Chip Density (bit)	16M
Number of Words	2M
Number of Bits/Word (bit)	8
Data Rate Architecture	SDR
Address Bus Width (bit)	21
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	10
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2.4
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	140
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	TSOP-II
Pin Count	44
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1
Package Length	18.41
Package Width	10.16
