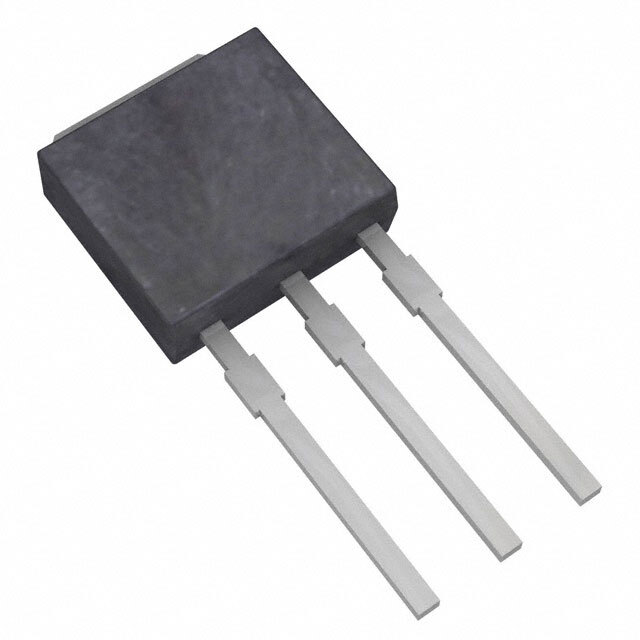

IPS70R900P7S

SKU: 37546

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 700V 6A Tube

2270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Process Technology	CoolMOS P7
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	700
Maximum Gate Source Voltage (V)	16
Maximum Gate Threshold Voltage (V)	3.5
Maximum Continuous Drain Current (A)	6
Maximum Gate Source Leakage Current (nA)	1000
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	900@10V
Typical Gate Charge @ Vgs (nC)	6.8@10V
Typical Gate Charge @ 10V (nC)	6.8
Typical Input Capacitance @ Vds (pF)	211@400V
Maximum Power Dissipation (mW)	30500
Typical Fall Time (ns)	31
Typical Rise Time (ns)	4.7
Typical Turn-Off Delay Time (ns)	58
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-40
Operating Temperature-Max	150
