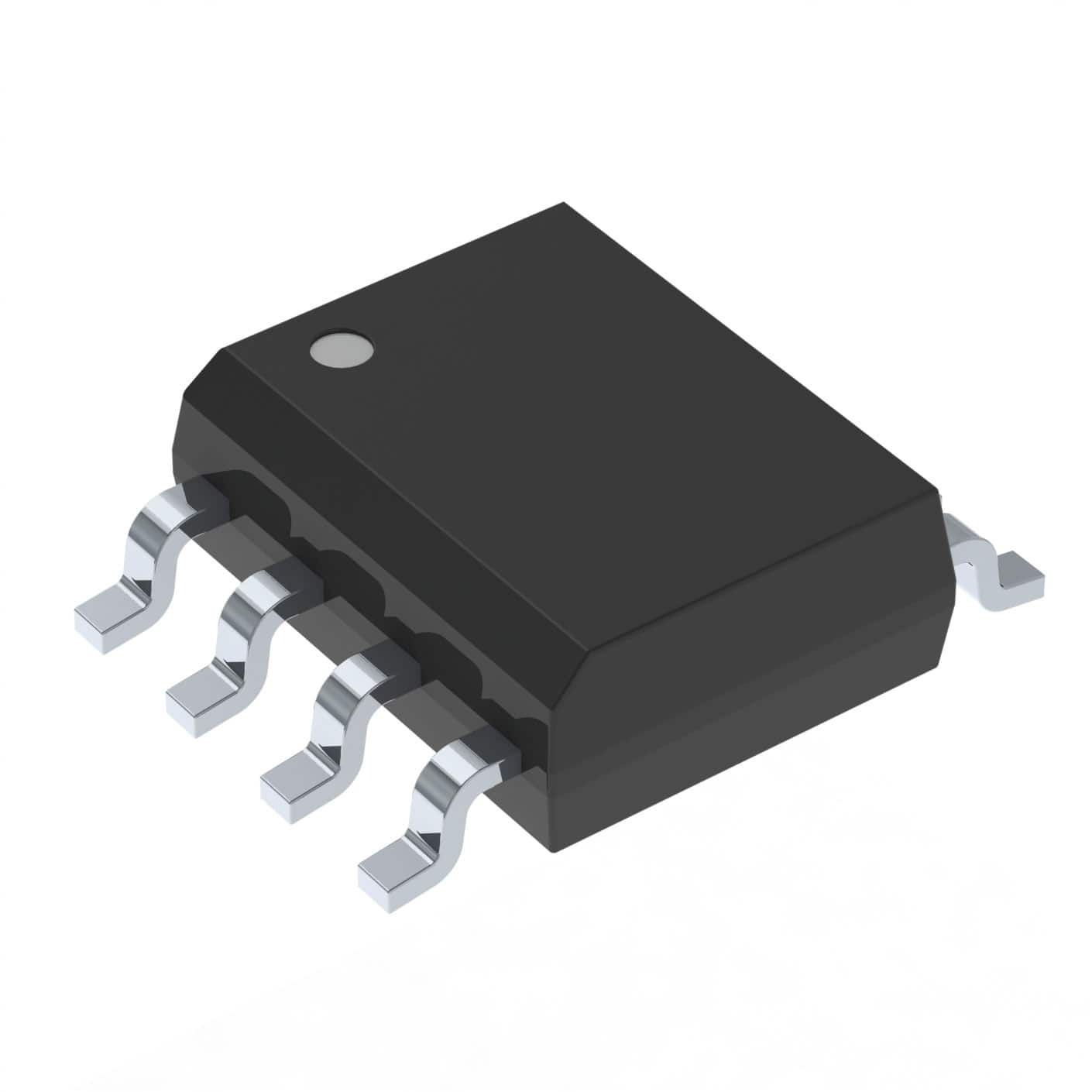

1EDI60H12AH

SKU: 8029

Manufacturer: Infineon Technologies AG

Driver 10A 1-OUT Inv/Non-Inv 8-Pin DSO T/R

2010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Driver Configuration	Inverting
Number of Drivers	1
Type	IGBT
Number of Outputs	1
Maximum Rise Time (ns)	10(Typ)
Maximum Fall Time (ns)	9(Typ)
Maximum Operating Frequency (kHz)	1000
Maximum Propagation Delay Time (ns)	300(Typ)
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	13
Operating Supply Voltage-Max (V)	35
Typical Input Low Threshold Voltage (V)	1.5(Max)
Typical Input High Threshold Voltage (V)	3.5(Min)
Peak Output Current (A)	10(Typ)
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	DSO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.45(Max)
Package Length	6.4(Max)
Package Width	7.6(Max)
PCB changed	8
