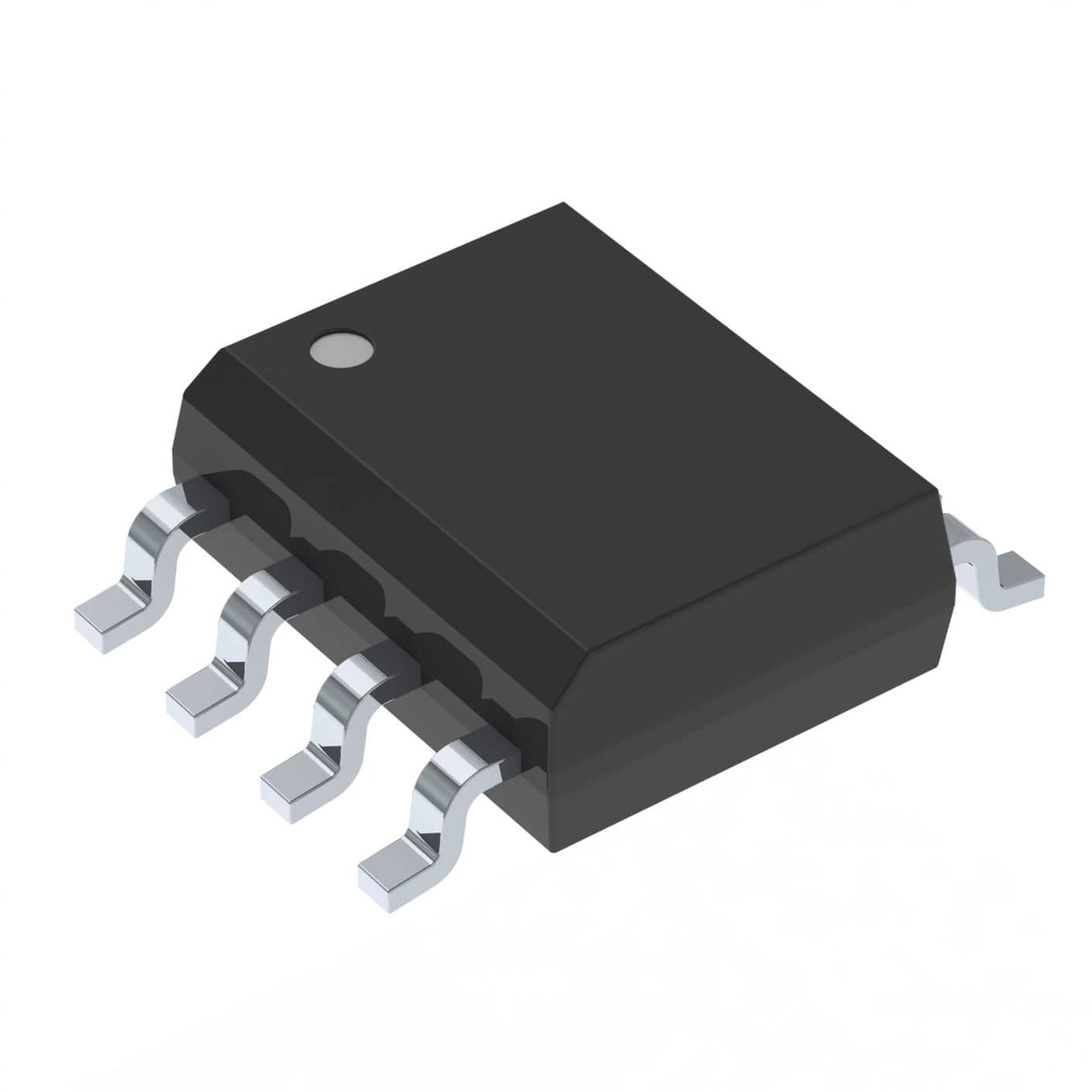

    1EDI20N12AF

    SKU: 6056
    Manufacturer: Infineon Technologies AG
    Driver 4A 1-OUT High Side/Low Side Non-Inv 8-Pin DSO T/R
    2710 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Driver Type Low Side
    Driver Configuration Non-Inverting
    Number of Drivers 1
    Type MOSFET
    Number of Outputs 1
    Maximum Rise Time (ns) 20
    Maximum Fall Time (ns) 19
    Maximum Operating Frequency (kHz) 4000
    Maximum Propagation Delay Time (ns) 143
    Input Logic Compatibility CMOS
    Operating Supply Voltage-Min (V) 10
    Operating Supply Voltage-Max (V) 17
    Peak Output Current (A) 4(Typ)
    Maximum Power Dissipation (mW) 400
    Operating Temperature-Min -40
    Operating Temperature-Max 125
    Special Features Under Voltage Lockout
    Latch-Up Proof No
    Packing Method Tape and Reel
    Original Package DSO
    Pin Count 8
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.25(Min)
    Package Length 5
    Package Width 4
    PCB changed 8
