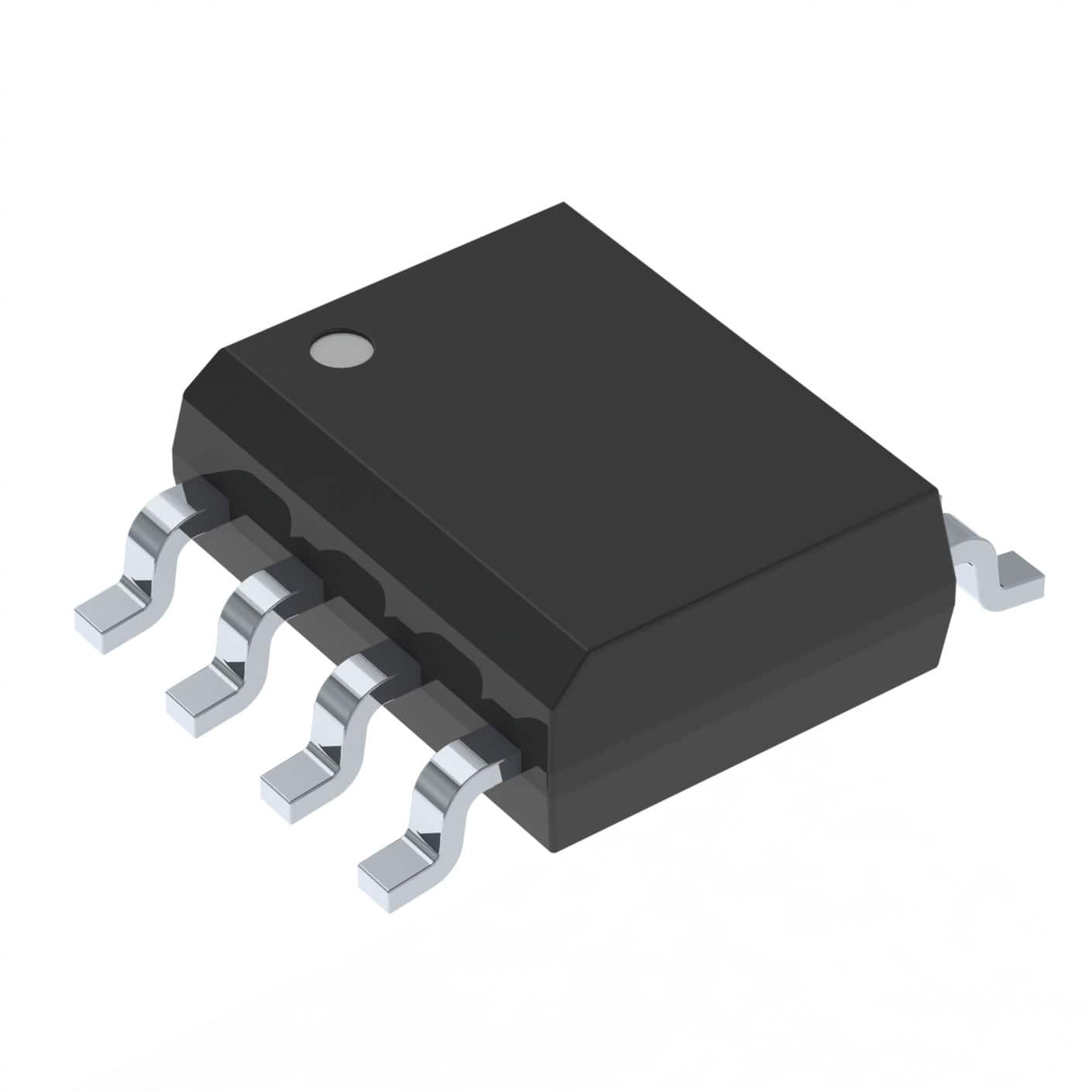

1EDI60N12AF

SKU: 7774

Manufacturer: Infineon Technologies AG

Driver 6A 1-OUT High Side/Low Side Inv/Non-Inv 8-Pin DSO T/R

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Inverting
Number of Drivers	1
Type	MOSFET
Number of Outputs	1
Maximum Rise Time (ns)	30
Maximum Fall Time (ns)	30
Maximum Operating Frequency (kHz)	4000
Maximum Propagation Delay Time (ns)	130
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	10
Operating Supply Voltage-Max (V)	35
Peak Output Current (A)	6(Min)
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Latch-Up Proof	No
Packing Method	Tape and Reel
Original Package	DSO
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.65(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
