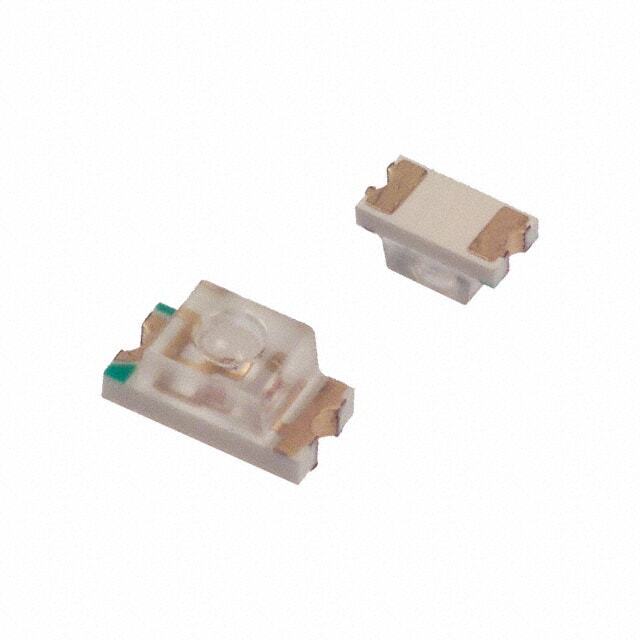

11-21VGC/TR8

SKU: 9658

Manufacturer: EVERLIGHT Electronics Co., Ltd

LED Uni-Color Green 570nm 2-Pin Chip 1206(3216Metric) T/R

590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
LED Body Material	GaP
Lens Shape Type	Circular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	18mcd
Dominant Wavelength (nm)	571
Peak Wavelength (nm)	570
Viewing Angle (°)	60
Maximum Forward Current (mA)	30
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Case 1206(3216Metric)
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
Package Height	1.1
Package Length	1.5
Package Width	3.2
