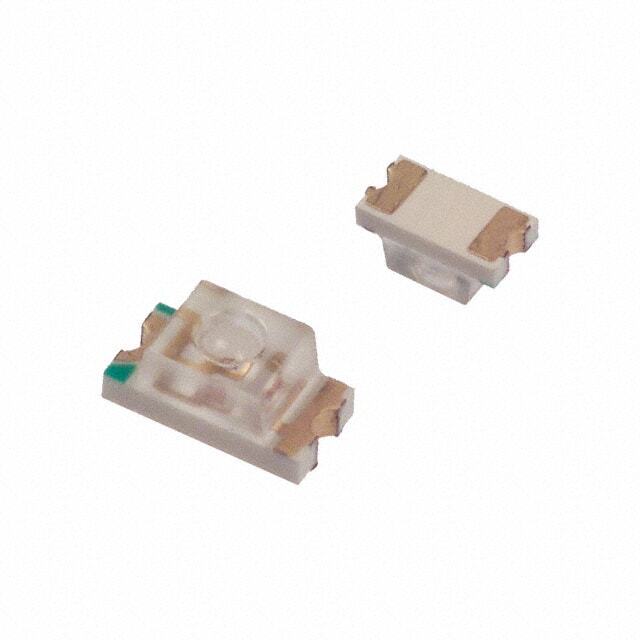

11-21VRC/TR8

SKU: 5585

Manufacturer: EVERLIGHT Electronics Co., Ltd

LED Uni-Color Hi-Eff. Red 640nm Automotive 2-Pin Chip LED T/R

1410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
Automotive	Unknown
PPAP	Unknown
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	GaAsP
Lens Shape Type	Circular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	10mcd
Dominant Wavelength (nm)	625
Peak Wavelength (nm)	640
Viewing Angle (°)	60
Maximum Forward Current (mA)	30
Test Current (mA)	20
Maximum Forward Voltage (V)	2.4
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Hi-Eff. Red
High Power	No
High Brightness	No
Original Package	Chip LED
Pin Count	2
Terminal Form	Surface Mount
Package Height	1.5
Package Length	3
Package Width	1.5
