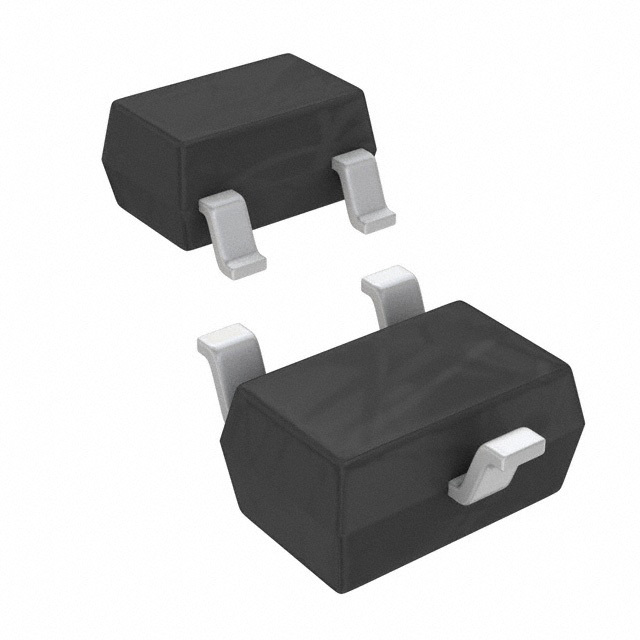

DMP2165UW-7

SKU: 18642

Manufacturer: Diodes Incorporated

Trans MOSFET P-CH 30V 2.5A 3-Pin SOT-323 T/R

11700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.21.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	30
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1
Maximum Continuous Drain Current (A)	2.5
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	90@4.5V
Typical Gate Charge @ Vgs (nC)	3.5@4.5V
Typical Input Capacitance @ Vds (pF)	335@15V
Maximum Power Dissipation (mW)	700
Typical Fall Time (ns)	8
Typical Rise Time (ns)	8.7
Typical Turn-Off Delay Time (ns)	17.8
Typical Turn-On Delay Time (ns)	3.7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-323
Pin Count	3
Standard Package Method	SOT-323
Terminal Form	Surface Mount
Package Height	0.95
Package Length	2.15
Package Width	1.3
PCB changed	3
