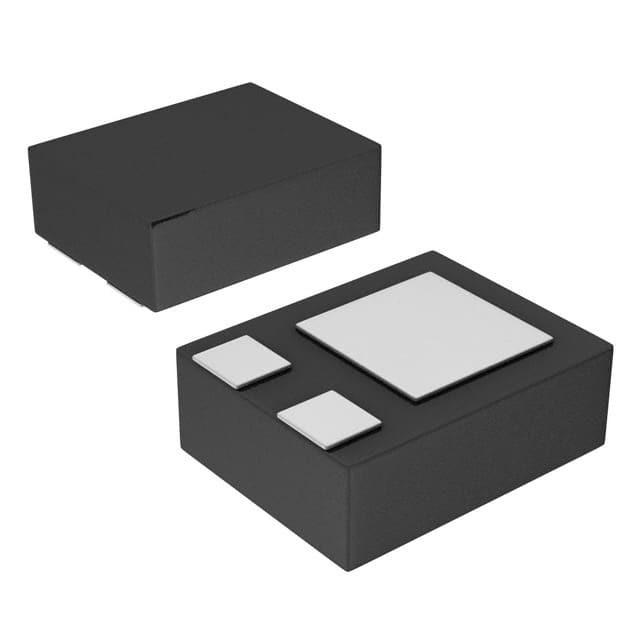

    DMP21D0UFB4-7B

    SKU: 75125
    Manufacturer: Diodes Incorporated
    Trans MOSFET P-CH 20V 1.17A 3-Pin X2-DFN T/R
    25640 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8541.21.00.95
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type P
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 20
    Maximum Gate Source Voltage (V) ±8
    Maximum Gate Threshold Voltage (V) 0.7(Typ)
    Maximum Continuous Drain Current (A) 1.17
    Maximum Gate Source Leakage Current (nA) 10000
    Maximum IDSS (uA) 1
    Maximum Drain Source Resistance (mOhm) 495@4.5V
    Typical Gate Charge @ Vgs (nC) 1.5@8V
    Typical Input Capacitance @ Vds (pF) 76.5@10V
    Maximum Power Dissipation (mW) 990
    Typical Fall Time (ns) 18.5
    Typical Rise Time (ns) 8
    Typical Turn-Off Delay Time (ns) 31.7
    Typical Turn-On Delay Time (ns) 7.1
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Supplier Temperature Grade Automotive
    Packing Method Tape and Reel
    Original Package X2-DFN
    Pin Count 3
    Standard Package Method DFN
    Terminal Form Surface Mount
    Package Height 0.35(Max)
    Package Length 0.6
    Package Width 1
    PCB changed 3
