597-2003-507F

SKU: 116276

Manufacturer: Dialight

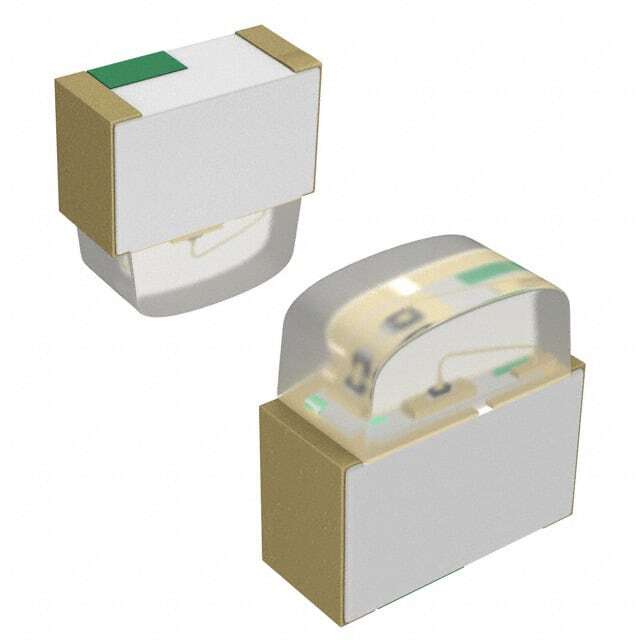

LED Uni-Color Orange 2-Pin Chip 0605(1611Metric) T/R

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Orange
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.2x0.55x0.47
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Right Angle
Intensity	40mcd
Dominant Wavelength (nm)	605
Viewing Angle (°)	135
Maximum Forward Current (mA)	20
Test Current (mA)	20
Reverse Voltage (V)	5
Maximum Power Dissipation (mW)	54
Operating Temperature-Min	-40
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Orange
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Original Package	Case 0605(1611Metric)
Pin Count	2
Standard Package Method	Case 0605
Terminal Form	Surface Mount
Package Height	0.55
Package Length	1.6
PCB changed	2
