597-2201-815F

SKU: 116279

Manufacturer: Dialight

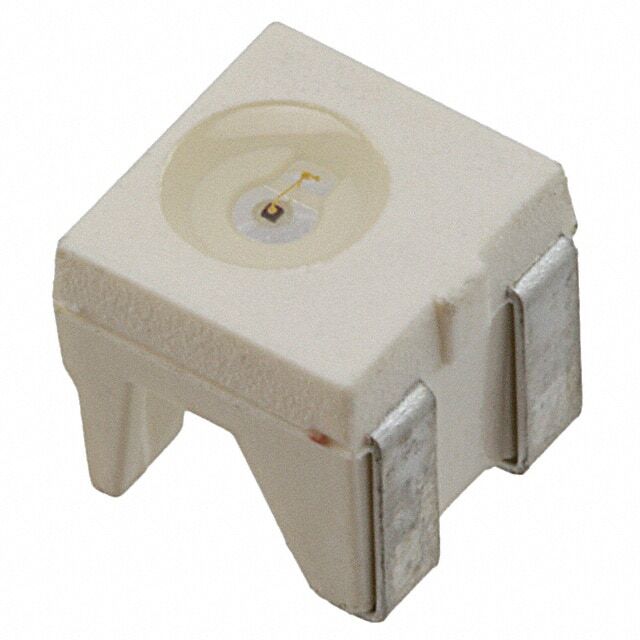

LED Uni-Color Yellow 2-Pin SMD T/R

600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
SVHC	Yes
Automotive	No
PPAP	No
Type	Uni-Color
Color	Yellow
Number of LEDs	1
LED Body Material	AlGaInP
Lens Shape Type	Circular
Lens Appearance	Colorless Non Diffused
Mounting Orientation	Top Mount
Intensity	900mcd(Max)
Dominant Wavelength (nm)	587
Viewing Angle (°)	120
Maximum Forward Current (mA)	40
Test Current (mA)	20
Maximum Forward Voltage (V)	2.1
Maximum Power Dissipation (mW)	110
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Yellow
High Power	No
High Brightness	Yes
Packing Method	Tape and Reel
Original Package	SMD
Pin Count	2
Standard Package Method	SMD
Terminal Form	Surface Mount
