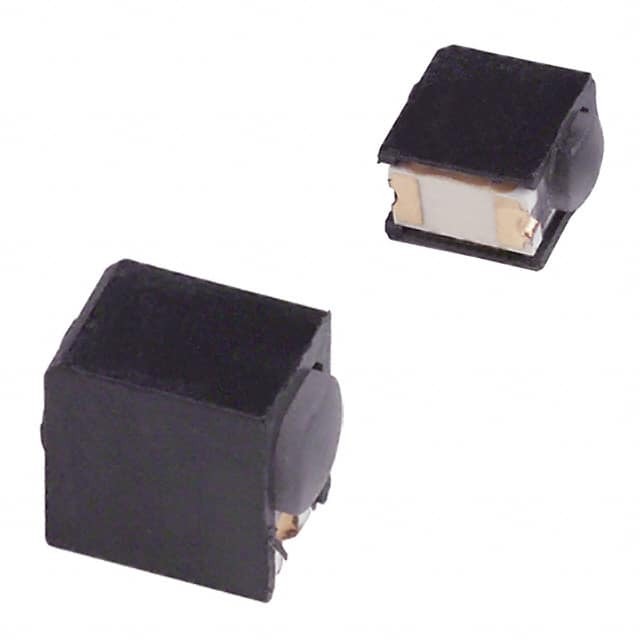

595-2301-01-3NF

SKU: 45669

Manufacturer: Dialight

LED Uni-Color Green 560nm T/R

3410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color	Green
Number of LEDs	1
Lens Shape Type	Rectangular
Mounting Orientation	Top Mount
Intensity	19mcd
Dominant Wavelength (nm)	567
Peak Wavelength (nm)	560
Maximum Forward Current (mA)	70
Test Current (mA)	20
Maximum Forward Voltage (V)	2.5
Reverse Voltage (V)	4
Maximum Power Dissipation (mW)	75
Operating Temperature-Min	-40
Operating Temperature-Max	100
Lead Standoff	No
Supplier Color	Green
High Power	No
High Brightness	No
