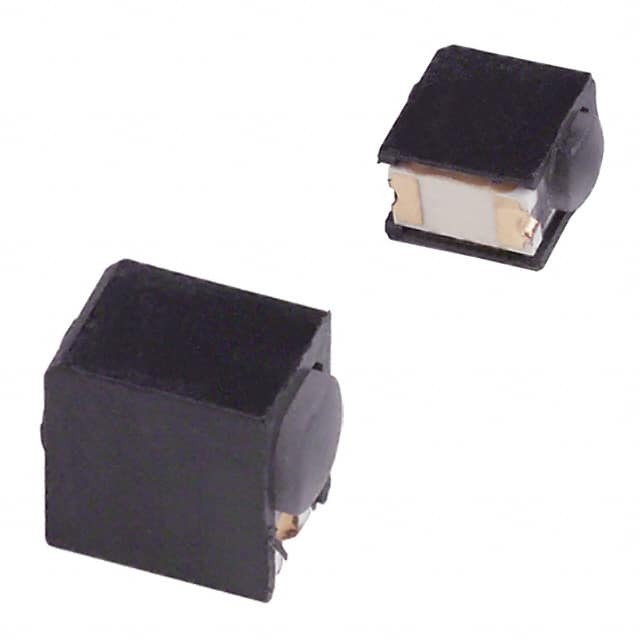

595-2101-013F

SKU: 128837

Manufacturer: Dialight

LED Uni-Color Red 660nm 4-Pin SMD T/R

2300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.20.00
Automotive	No
PPAP	No
Type	Uni-Color
Product Category	Chip LED
Color
Number of LEDs	1
LED Body Material	GaAlAs
Lens Shape Type	Rectangular
Lens Dimensions (mm)	1.7x1.83x0.46
Mounting Orientation	Right Angle
Intensity	25mcd
Peak Wavelength (nm)	660
Viewing Angle (°)	40
Maximum Forward Current (mA)	30
Maximum Forward Voltage (V)	2
Reverse Voltage (V)	4(Min)
Maximum Power Dissipation (mW)	60
Operating Temperature-Min	-30
Operating Temperature-Max	85
Lead Standoff	No
Supplier Color	Red
High Power	No
High Brightness	No
Packing Method	Tape and Reel
Pin Count	4
Standard Package Method	SMD
Original Package	SMD
Terminal Form	Surface Mount
Package Height	3.58
Package Length	3.76
Package Width	2.5
PCB changed	4
