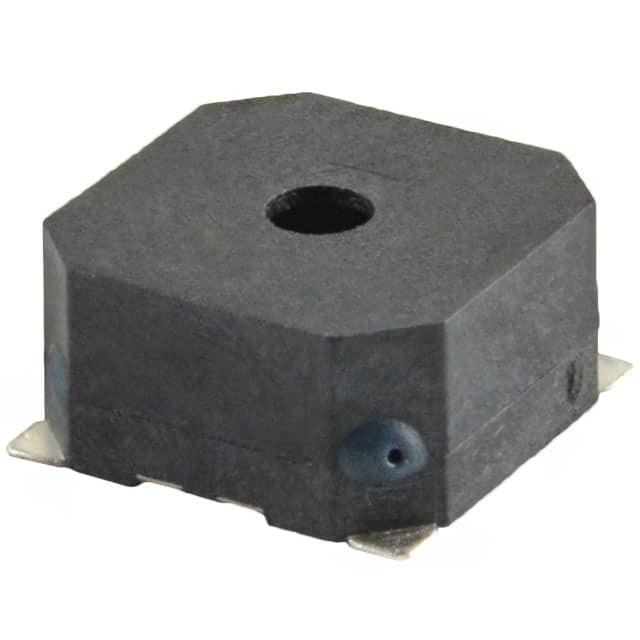

CMT-8540S-SMT-TR

SKU: 145698

Manufacturer: CUI Devices

8.5 mm, 5.0 Vo-p, 100 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

1050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8531.80.90.41
Automotive	No
PPAP	No
Type	Buzzer
Technology	Magnetic
Maximum Resonant Frequency (Hz)	4000(Typ)
Minimum Sound Pressure (dBA)	100dB
Tone Mode	Pulse
Operating Supply Voltage-Min	1Vo-p
Typical Operating Supply Voltage	5Vo-p
Operating Supply Voltage-Max	6Vo-p
Maximum Supply Current (mA)	150
Terminal Form	Surface Mount
Termination Method	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-20
Operating Temperature-Max	70
Product Weight (g)	0.8
Length (mm)	8.5
Depth (mm)	8.5
