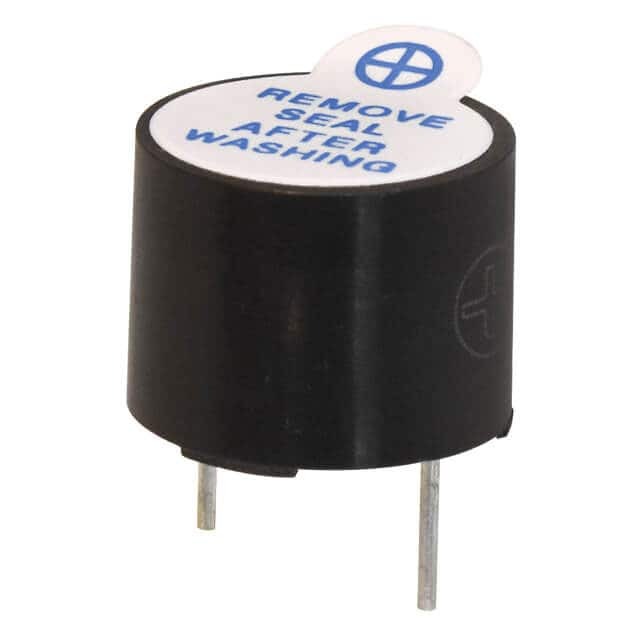

CMI-1295-0585T

SKU: 58626

Manufacturer: CUI Devices

12 mm, 5 Vdc, 85 dB, Through Hole, Driving Circuit, Magnetic Audio Indicator Buzzer

1870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8531.80.90.41
Automotive	No
PPAP	No
Type	Buzzer
Technology	Magnetic
Maximum Resonant Frequency (Hz)	2600
Frequency Range (Hz)	2000 to 2600
Minimum Sound Pressure (dBA)	85dB
Operating Supply Voltage-Min	4VDC
Typical Operating Supply Voltage	5VDC
Operating Supply Voltage-Max	7VDC
Maximum Supply Current (mA)	30
Terminal Form	Through Hole
Termination Method	Pin
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	85
Product Weight (g)	2
Product Diameter (mm)	12
