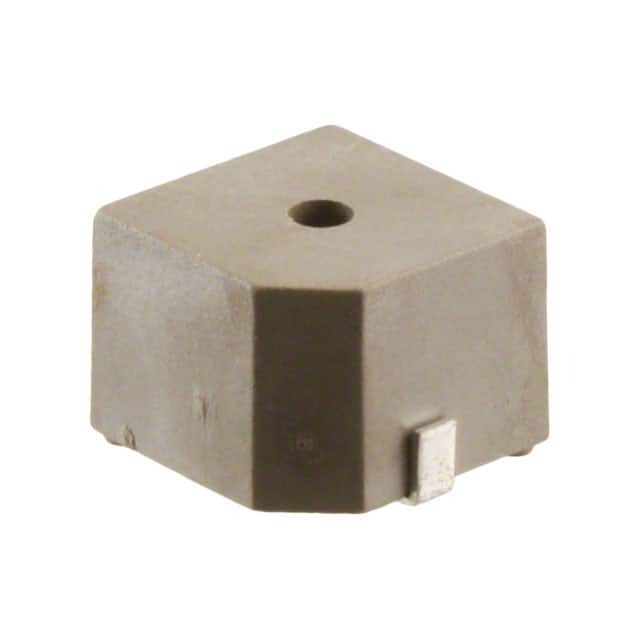

CT-1205H-SMT-TR

SKU: 72637

Manufacturer: CUI Devices

12.8 mm, 5 V, 88 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

17790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8531.80.90.41
Automotive	No
PPAP	No
Type	Buzzer
Technology	Magnetic
Maximum Resonant Frequency (Hz)	2400(Typ)
Minimum Sound Pressure (dBA)	88dB
Operating Supply Voltage-Min	3Vo-p
Typical Operating Supply Voltage	5Vo-p
Operating Supply Voltage-Max	7Vo-p
Maximum Supply Current (mA)	60
Terminal Form	Surface Mount
Termination Method	Solder Pad
Number of Terminals	2
Operating Temperature-Min	-30
Operating Temperature-Max	70
Length (mm)	12.8
Depth (mm)	12.8
