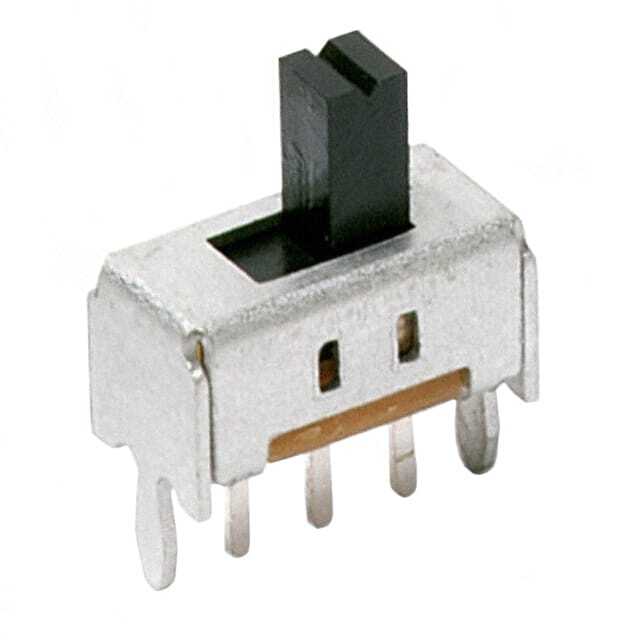

OS102011MS2QN1

SKU: 27968

Manufacturer: C&K

Switch Slide ON ON SPDT Top Slide 0.1A 12VDC 10000Cycles PC Pins Thru-Hole Bulk

760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.50
SVHC	Yes
Automotive	No
PPAP	No
Actuator Style	Top Slide
Pole Throw Configuration	SPDT
Switch Configuration	ON ON
Current Rating-Max(A)	0.1@12VDC
Dielectric Strength	500VAC
Minimum Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	<=20
Electrical Life (Cycles)	10000
Mechanical Life (Cycles)	10000
Actuator Color	Black
Actuator Length (mm)	4
Number of Rows	1
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	3
Terminal Length (mm)	2.8
Terminal Pitch (mm)	2
Seal Location	Terminals
Base Body Material	Phenolic Resin
Body Orientation	Straight
Operating Temperature-Min	-30
Operating Temperature-Max	70
Packing Method	Bulk
Size Type	Miniature
Body Length (mm)	8.6
Body Depth (mm)	4.3
Body Height (mm)	4.7
Length (mm)	8.6
Depth (mm)	4.3
