S202031MS02Q

SKU: 122867

Manufacturer: C&K

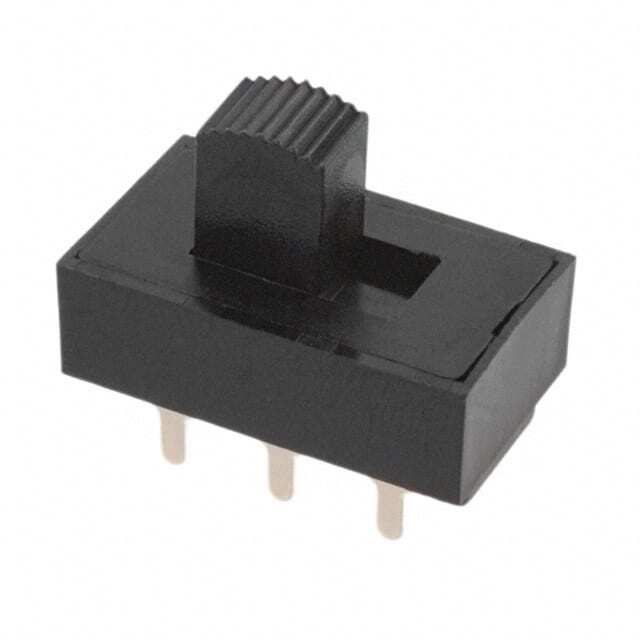

Switch Slide ON ON DPDT Extended Top Slide 6A 250VAC 125VDC PC Pins Thru-Hole Bulk

2690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.50.90.50
Automotive	No
PPAP	No
Actuator Style	Extended Top Slide
Pole Throw Configuration	DPDT
Switch Configuration	ON ON
Current Rating-Max(A)	6@250VAC
Dielectric Strength	1000Vrms
Minimum Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	<10
Electrical Life (Cycles)	10000
Actuator Color	Black
Actuator Length (mm)	8.51
Number of Rows	2
Row Spacing (mm)	7.62
Terminal Form	Through Hole
Terminal Form	PC Pins
Number of Terminals	6
Terminal Length (mm)	6.35
Terminal Pitch (mm)	6.35
Housing Body Material	Nylon 6/6
Body Orientation	Straight
Operating Temperature-Min	-30
Operating Temperature-Max	65
Packing Method	Bulk
Body Length (mm)	22.99
Body Depth (mm)	13.46
Body Height (mm)	7.11
Length (mm)	22.99
Depth (mm)	13.46
