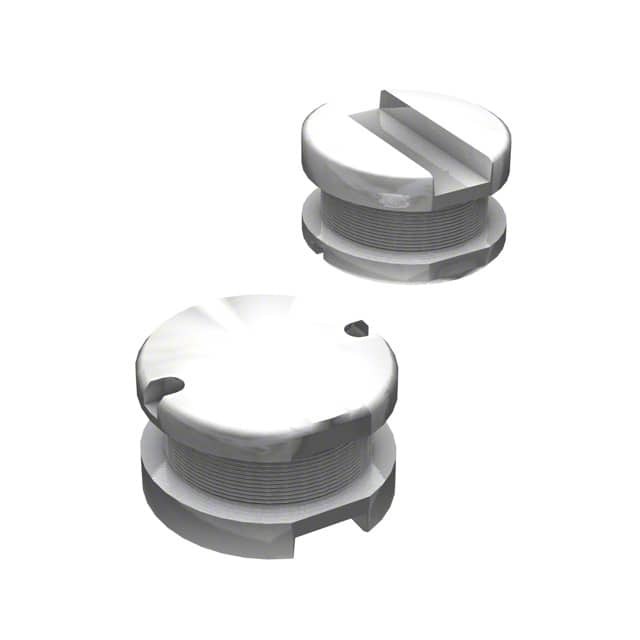

SDR1006-6R8ML

SKU: 113238

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 6.8uH 20% 1KHz 33Q-Factor Ferrite 3.4A 0.044Ohm DCR T/R

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	6.8u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	20%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	3.4
Maximum Saturation Current (A)	5.9(Typ)
Maximum DC Resistance (Ohm)	0.044
Minimum Quality Factor	33
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	32M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Diameter (mm)	9.8
Terminal Form	Surface Mount
