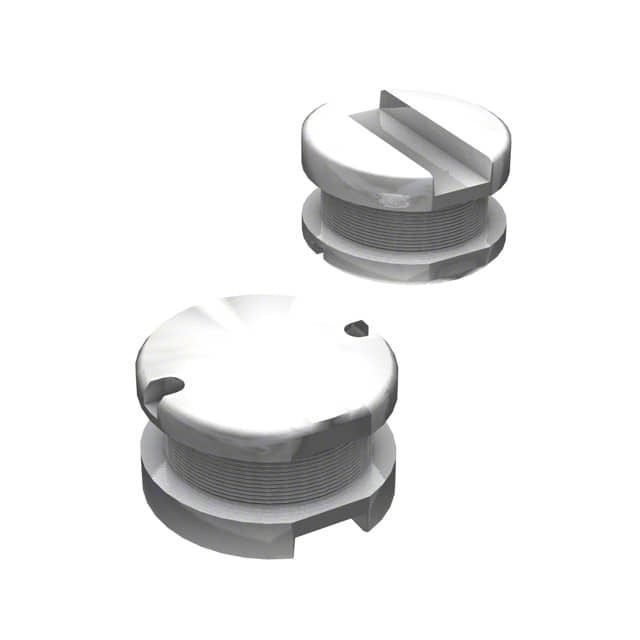

SDR1006-8R2ML

SKU: 28424

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 8.2uH 20% 1KHz 31Q-Factor Ferrite 3A 0.048Ohm DCR T/R

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	8.2u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	20%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	3
Maximum Saturation Current (A)	5.4(Typ)
Maximum DC Resistance (Ohm)	0.048
Minimum Quality Factor	31
Quality Test Frequency (Hz)	7.96M
Minimum Self Resonant Frequency (Hz)	24M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Diameter (mm)	9.8
Terminal Form	Surface Mount
