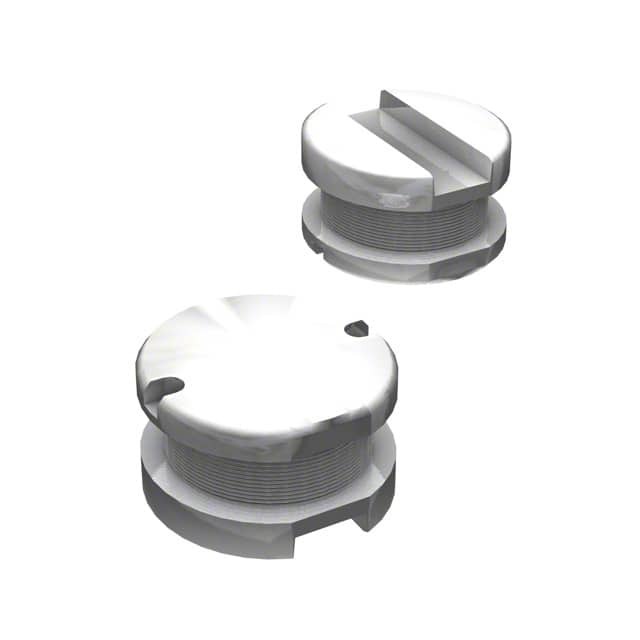

SDR1006-681KL

SKU: 91950

Manufacturer: Bourns

Inductor Power Unshielded Wirewound 680uH 10% 1KHz 12Q-Factor Ferrite 0.28A 2.25Ohm DCR T/R

1670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8504.50.80.00
Automotive	No
PPAP	No
Type	Power
Technology	Wirewound
Protection Style	Unshielded
Core Body Material	Ferrite
Inductance (H)	680u
Inductance Decrease Percentage @ Isat (%)	10
Tolerance	10%
Inductance Test Frequency (Hz)	1K
Maximum DC Current (A)	0.28
Maximum Saturation Current (A)	0.65(Typ)
Maximum DC Resistance (Ohm)	2.25
Minimum Quality Factor	12
Quality Test Frequency (Hz)	796K
Minimum Self Resonant Frequency (Hz)	2.1M
Number of Terminals	2
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Product Diameter (mm)	9.8
Terminal Form	Surface Mount
