    PrevLMZ31506RUQR
    NextLQS60A48-3V3REJ

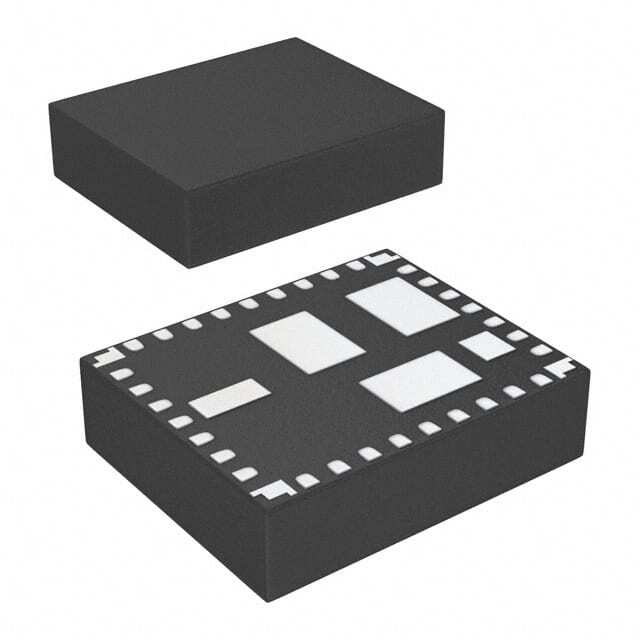

    LMZ35003RKGR

    SKU: 104328
    Manufacturer: Texas Instruments
    Module DC-DC 1-OUT 2.5V to 15V 2.5A 41-Pin B1QFN T/R
    Request Free Samples
    2430 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Type Step Down
    Number of Outputs 1
    Isolation Non-Isolated
    Minimum Input Voltage (V) 7
    Maximum Input Voltage (V) 50
    Output Voltage (V) 2.5 to 15
    Output Current (A) 2.5
    Input/Output Type DC/DC
    Typical Standby Current (mA) 0.0013
    Switching Frequency (kHz) 400 to 1000
    Switching Regulator Yes
    Load Regulation 0.4%(Typ)
    Line Regulation 0.1%(Typ)
    Efficiency (%) 93(Typ)
    On/Off Logic Positive
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tape and Reel
    Output Type Adjustable
    Original Package B1QFN
    Pin Count 41
    Standard Package Method QFN
    Terminal Form Surface Mount
    Package Height 2.85(Max)
    Package Length 11.15(Max)
    Package Width 9.15(Max)
    PCB changed 41
