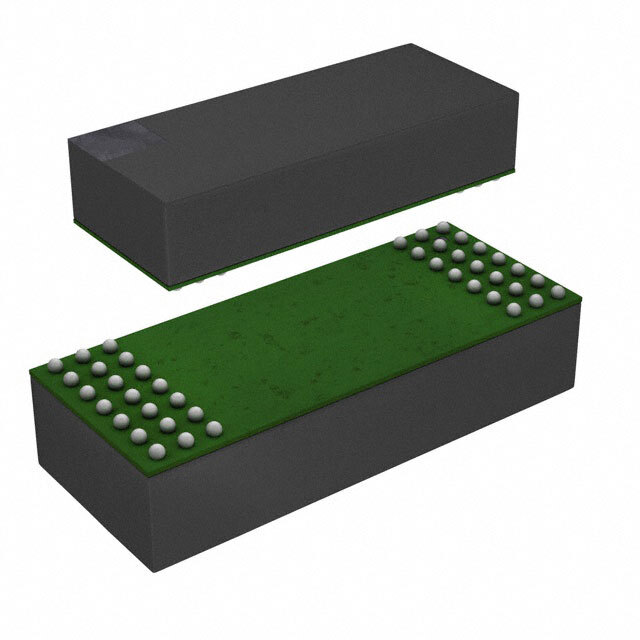

LTM9100IY#PBF

SKU: 158100

Manufacturer: Analog Devices

Digital Isolator Logic 2-CH 42-Pin BGA Tray

1560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	General Purpose
Number of Channels per Chip	2
Maximum Rise Time (ns)	50
Maximum Fall Time (ns)	50
Output Type	Logic
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	4.5
Minimum Isolation Voltage (Vrms)	5000
Maximum Propagation Delay Time (tPHL) (ns)	500
Maximum Propagation Delay Time (tPLH) (ns)	500
Maximum Working Insulation Voltage	1000Vp
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Minimum Common Mode Rejection (kV/us)	30
Maximum ESD Protection Voltage (kV)	±20(Typ)@HBM
Coupling Type	Capacitive Coupling
Standard Package Method	BGA
Original Package	BGA
Pin Count	42
Terminal Form	Surface Mount
Package Height	4.56
Package Length	22
Package Width	9
PCB changed	42
