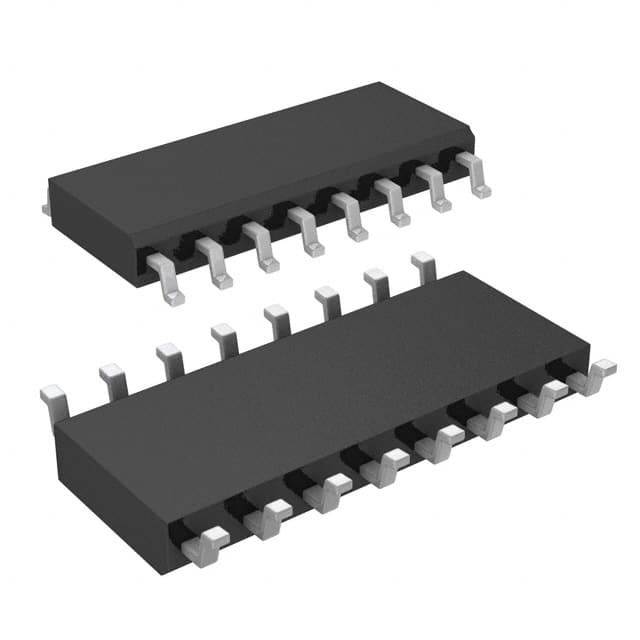

MAX14930FASE+

SKU: 119269

Manufacturer: Maxim Integrated

Digital Isolator CMOS 4-CH 150Mbps Medical 16-Pin SOIC N

3920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	SPI
Process Technology	BiCMOS
Number of Channels per Chip	4
Maximum Data Rate	150Mbps
Maximum Rise Time (ns)	2
Maximum Fall Time (ns)	2
Minimum Pulse Width (ns)	40
Maximum Pulse Width Distortion (ns)	4.7
Output Type	CMOS
Operating Supply Voltage-Max (V)	5.5
Operating Supply Voltage-Min (V)	1.71
Minimum Isolation Voltage (Vrms)	2750
Maximum Propagation Delay Time (tPHL) (ns)	60.2
Maximum Propagation Delay Time (tPLH) (ns)	58.4
Maximum Working Insulation Voltage	443Vrms
Maximum Power Dissipation (mW)	1066.7
Operating Temperature-Min	-40
Operating Temperature-Max	125
Forward/Reverse Channels	4/0
Minimum Common Mode Rejection (kV/us)	25(Typ)
Coupling Type	Capacitive Coupling
Standard Package Method	SOP
Original Package	SOIC N
Pin Count	16
Terminal Form	Surface Mount
Package Height	1.37
Package Length	9.9
Package Width	3.9
PCB changed	16
