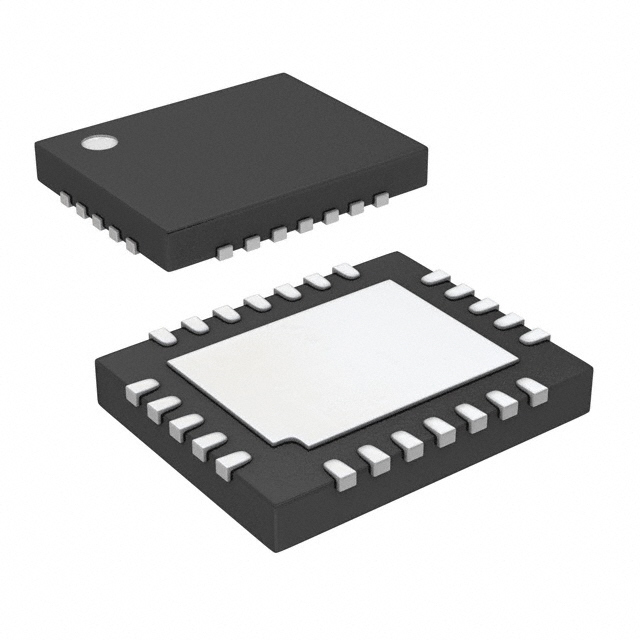

LTC7801IUFD#PBF

SKU: 112073

Manufacturer: Analog Devices

DC/DC Cntrlr Single-OUT Step Down 850kHz Automotive 24-Pin QFN EP Tube

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.8 to 60
Maximum Switching Frequency (kHz)	850
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	140
Operating Supply Voltage (V)	4 to 140
Maximum Supply Current (mA)	2.5(Typ)
Typical Quiescent Current (mA)	0.04
Typical Gate Driver Pull Up Resistance (Ohm)	2/2.2
Typical Gate Driver Pull Down Resistance (Ohm)	1/1
Minimum Switching Frequency (kHz)	75
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	24
