LTC7801IUFD#TRPBF

SKU: 112072

Manufacturer: Analog Devices

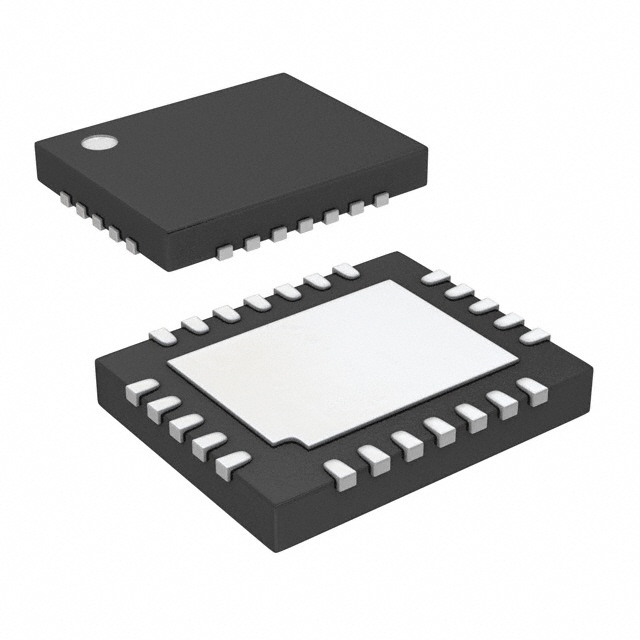

DC/DC Cntrlr Single-OUT Step Down 850kHz Automotive 24-Pin QFN EP T/R

2690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.8 to 60
Maximum Switching Frequency (kHz)	850
Minimum Input Voltage (V)	4
Maximum Input Voltage (V)	140
Operating Supply Voltage (V)	4 to 140
Maximum Supply Current (mA)	2.5(Typ)
Typical Quiescent Current (mA)	0.04
Typical Gate Driver Pull Up Resistance (Ohm)	2/2.2
Typical Gate Driver Pull Down Resistance (Ohm)	1/1
Minimum Switching Frequency (kHz)	75
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	24
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	5
Package Width	4
PCB changed	24
