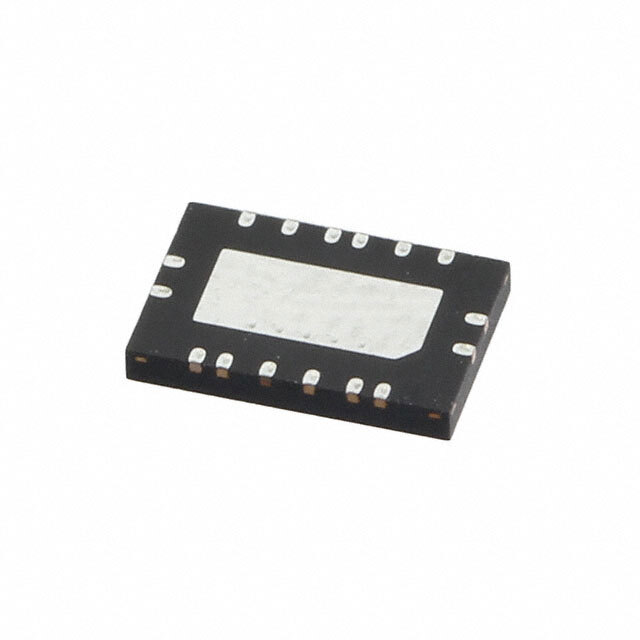

LTC6091IUFE#TRPBF

SKU: 41357

Manufacturer: Analog Devices

Op Amp Dual Precision Amplifier R-R O/P ±70V/140V Automotive 16-Pin QFN EP T/R

4030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	1@±70V
Minimum Single Supply Voltage (V)	9.5
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	140
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±70
Maximum Input Offset Current (uA)	0.00012@±15V@-40C to 85C
Typical Input Bias Current (uA)	0.000003@±70V
Maximum Input Bias Current (uA)	0.00005@±70V@-40C to 85C
Maximum Quiescent Current (mA)	7.8@±70V
Typical Output Current (mA)	90
Power Supply Type	Single
Typical Slew Rate (V/us)	21@±70V
Typical Input Noise Voltage Density (nV/rtHz)	14@±70V
Typical Voltage Gain (dB)	140
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.001@±70V
Minimum PSRR (dB)	112
Minimum CMRR (dB)	130
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	12
Typical Settling Time (ns)	2000
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6
Package Width	4
PCB changed	16
