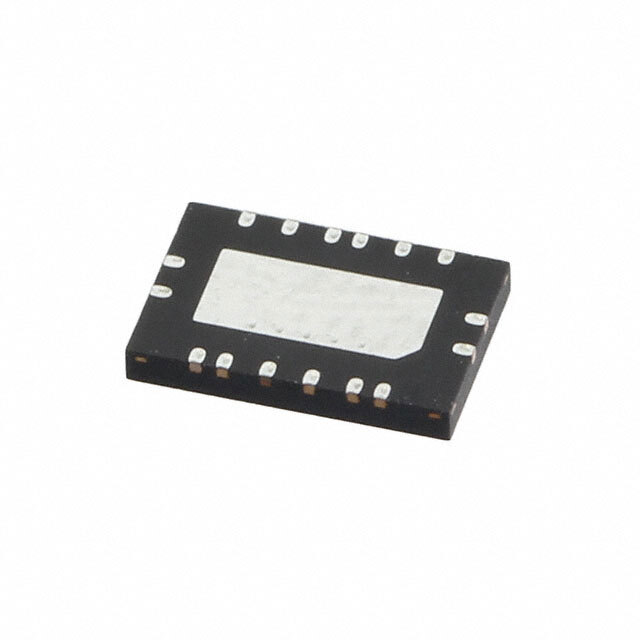

LTC6091IUFE#PBF

SKU: 126158

Manufacturer: Analog Devices

Op Amp Dual Precision Amplifier R-R O/P ±70V/140V Automotive 16-Pin QFN EP Tube

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Precision Amplifier
Manufacturer Type	Precision Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Process Technology	CMOS
Output Type	CMOS
Maximum Input Offset Voltage (mV)	1@±70V
Minimum Single Supply Voltage (V)	9.5
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	140
Minimum Dual Supply Voltage (V)	±4.75
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±70
Maximum Input Offset Current (uA)	0.00012@±15V@-40C to 85C
Typical Input Bias Current (uA)	0.000003@±70V
Maximum Input Bias Current (uA)	0.00005@±70V@-40C to 85C
Maximum Quiescent Current (mA)	7.8@±70V
Typical Output Current (mA)	90
Power Supply Type	Single
Typical Slew Rate (V/us)	21@±70V
Typical Input Noise Voltage Density (nV/rtHz)	14@±70V
Typical Voltage Gain (dB)	140
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.001@±70V
Minimum PSRR (dB)	112
Minimum CMRR (dB)	130
Minimum CMRR Range (dB)	>=115
Typical Gain Bandwidth Product (MHz)	12
Typical Settling Time (ns)	2000
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tube
Pin Count	16
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	6
Package Width	4
PCB changed	16
