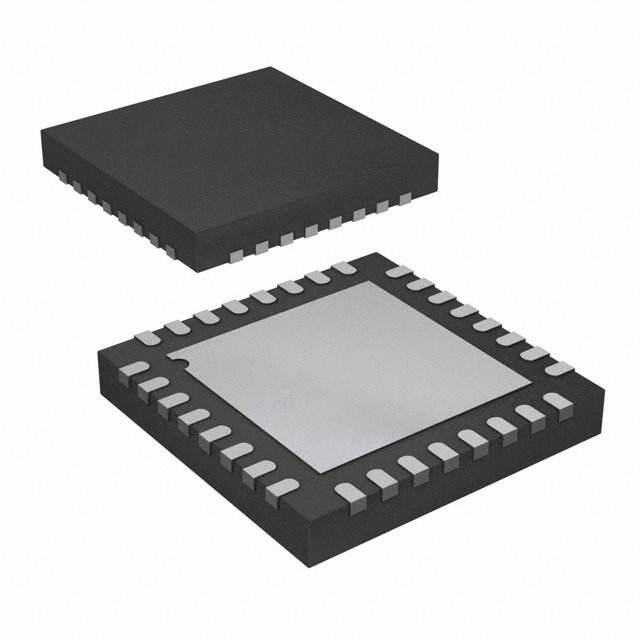

HMC994APM5E

SKU: 30424

Manufacturer: Analog Devices

RF Amp Single Power Amp 28GHz 11V 32-Pin LFCSP EP Cut Tape

3810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	28000
Typical Gain Flatness (dB)	±0.5
Typical Power Gain (dB)	16@28000MHz
Typical Output Power (dBm)	27@28000MHz
Typical Output Intercept Point (dBm)	36@28000MHz
Maximum Input Return Loss (dB)	12(Typ)@28000MHz
Maximum Output Return Loss (dB)	20(Typ)@28000MHz
Typical Noise Figure (dB)	4@28000MHz
Operating Supply Voltage-Max (V)	11
Minimum Single Supply Voltage (V)	8
Typical Single Supply Voltage (V)	10
Maximum Single Supply Voltage (V)	11
Maximum Supply Current (mA)	250(Typ)@10V
Power Supply Type	Single
Maximum Power Dissipation (mW)	3500
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Original Package	LFCSP EP
Pin Count	32
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	1.22
Package Length	5
Package Width	5
PCB changed	32
