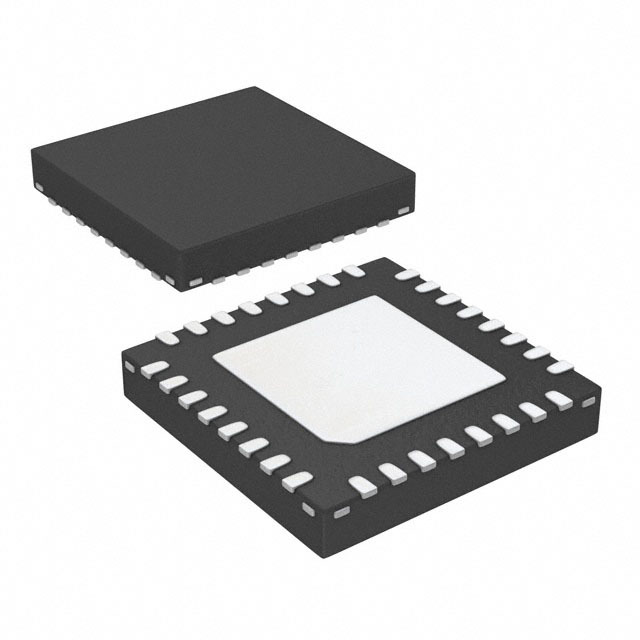

HMC992LP5ETR

SKU: 23336

Manufacturer: Analog Devices

RF Amp Dual AGC Amp 800MHz 5.6V 32-Pin QFN EP T/R

2530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	AGC Amplifier
Number of Channels per Chip	2
Maximum Operating Frequency (MHz)	800
Typical Power Gain (dB)	33@800MHz
Typical Output Power (dBm)	18.8@800MHz
Typical Output Intercept Point (dBm)	35@800MHz
Maximum Input Return Loss (dB)	12(Typ)@800MHz
Maximum Output Return Loss (dB)	12(Typ)@800MHz
Typical Noise Figure (dB)	6
Operating Supply Voltage-Max (V)	5.6
Maximum Single Supply Voltage (V)	5.6
Maximum Supply Current (mA)	215(Typ)@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	3160
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.1(Max)
Package Width	5.1(Max)
PCB changed	32
