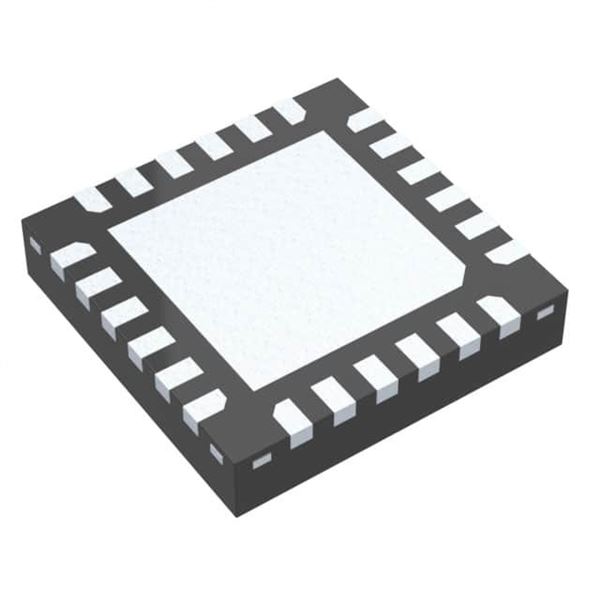

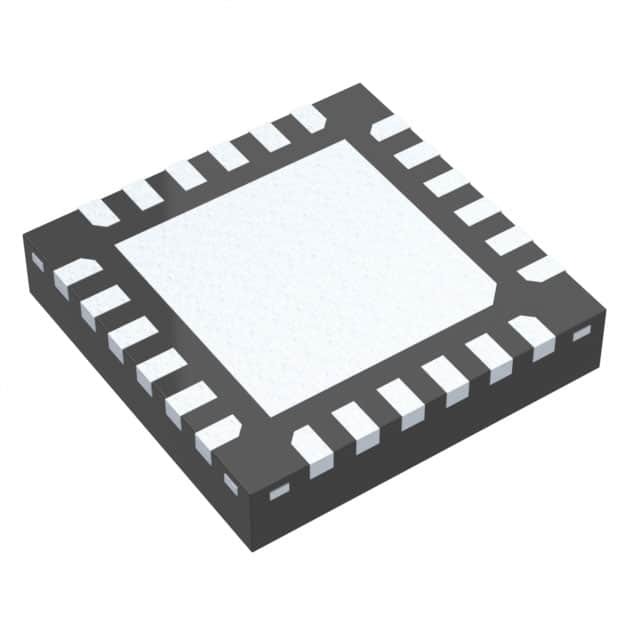

HMC996LP4E

SKU: 44645

Manufacturer: Analog Devices

RF Amp Single VGA 12GHz 5.5V 24-Pin QFN EP Reel

1820 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	12000
Typical Gain Flatness (dB)	±1
Typical Power Gain (dB)	16@12000MHz
Typical Output Power (dBm)	23@12000MHz
Typical Output Intercept Point (dBm)	34@12000MHz
Maximum Input Return Loss (dB)	9(Typ)@12000MHz
Maximum Output Return Loss (dB)	7(Typ)@12000MHz
Typical Noise Figure (dB)	2@12000MHz
Operating Supply Voltage-Max (V)	5.5
Maximum Dual Supply Voltage (V)	5.5
Maximum Supply Current (mA)	120(Typ)@5V
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1030
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Reel
Original Package	QFN EP
Pin Count	24
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	24
