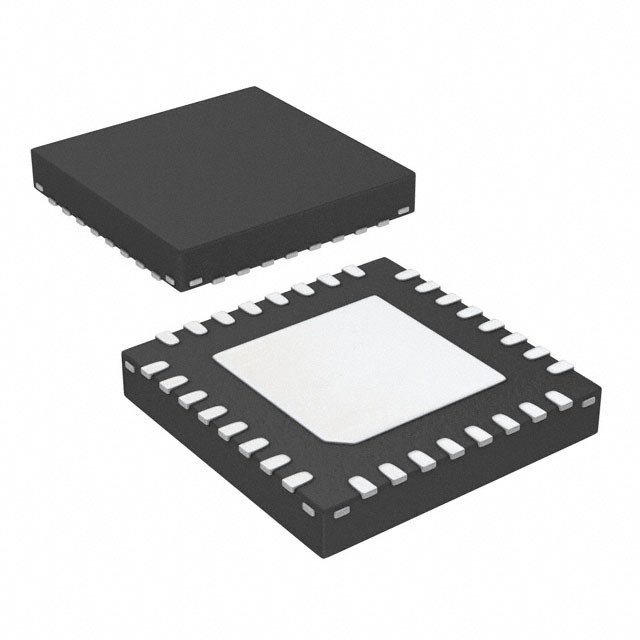

HMC625ALP5E

SKU: 23332

Manufacturer: Analog Devices

RF Amp Single VGA 6GHz 5.6V 32-Pin QFN EP T/R

3050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	6000
Typical Power Gain (dB)	13@6000MHz
Typical Output Power (dBm)	16@6000MHz
Typical Output Intercept Point (dBm)	33@6000MHz
Maximum Input Return Loss (dB)	15(Typ)@6000MHz
Maximum Output Return Loss (dB)	13(Typ)@6000MHz
Typical Noise Figure (dB)	6@900MHz
Operating Supply Voltage-Max (V)	5.6
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.6
Maximum Supply Current (mA)	100@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	546
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	32
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	5.1(Max)
Package Width	5.1(Max)
PCB changed	32
