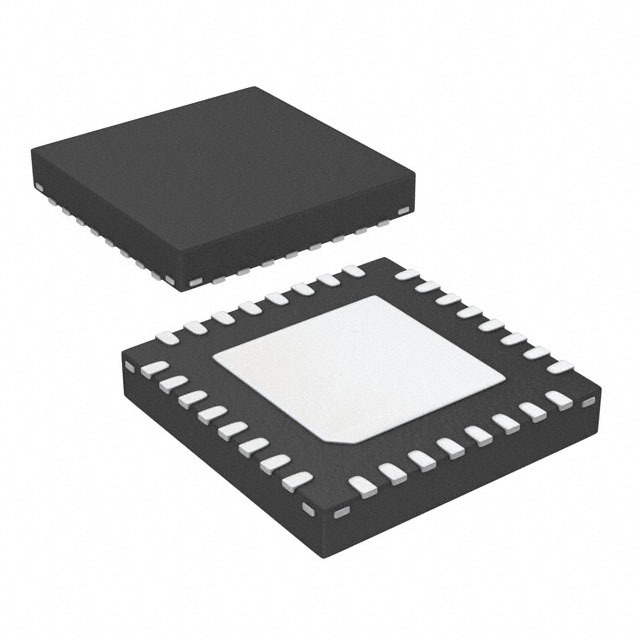

HMC625BLP5E

SKU: 19021

Manufacturer: Analog Devices

RF Amp Single VGA 5GHz 5.6V 32-Pin LFCSP EP T/R

2400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Variable Gain Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	5000
Typical Power Gain (dB)	13@5000MHz
Typical Output Power (dBm)	16@5000MHz
Typical Output Intercept Point (dBm)	32@5000MHz
Maximum Input Return Loss (dB)	15(Typ)@5000MHz
Maximum Output Return Loss (dB)	10(Typ)@5000MHz
Typical Noise Figure (dB)	6@900MHz
Operating Supply Voltage-Max (V)	5.6
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.6
Maximum Supply Current (mA)	100@5V
Power Supply Type	Single
Maximum Power Dissipation (mW)	546
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	LFCSP EP
Pin Count	32
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
PCB changed	32
