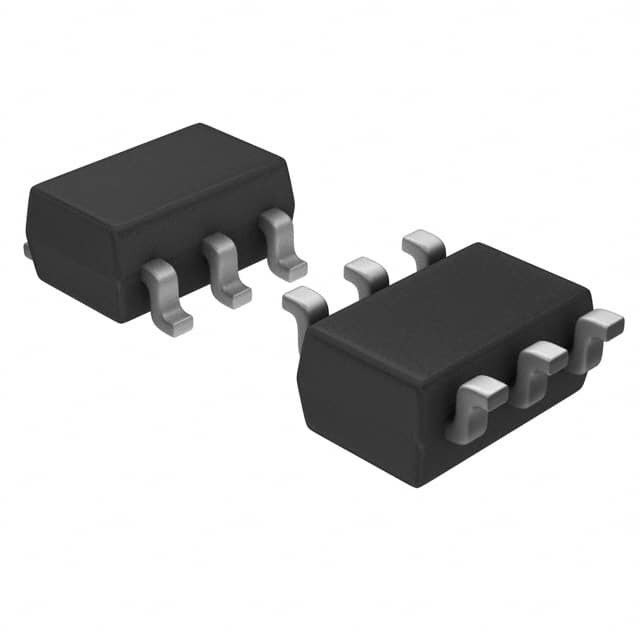

HMC545AE

SKU: 150745

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 3GHz 19dB Automotive 6-Pin SOT-23 Cut Tape

27810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542390000
Automotive	Unknown
PPAP	Unknown
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	70(Typ)
Frequency Band (MHz)	0 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	19
Maximum Insertion Loss (dB)	0.7
Typical Input 1dB Compressed Power (dBm)	33
Technology	GaAs MMIC
High Control Voltage (V)	3 to 8
Maximum Power Dissipation (mW)	100
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Original Package	SOT-23
Pin Count	6
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.15
Package Length	2.9
Package Width	1.6
PCB changed	6
