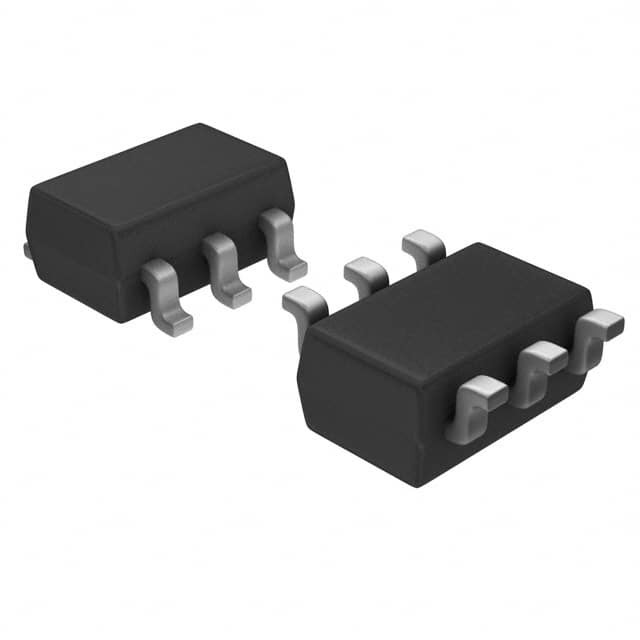

HMC544ETR

SKU: 40246

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 4GHz 8dB 6-Pin SOT-26 T/R

10580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542390000
Automotive	No
PPAP	No
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	70
Frequency Band (MHz)	0 to 4000
Maximum Frequency (MHz)	4000
Minimum Isolation Voltage (dB)	8
Maximum Insertion Loss (dB)	1
Typical Input 1dB Compressed Power (dBm)	39
Technology	GaAs MMIC
Maximum Power Dissipation (mW)	465
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3(Max)
Package Width	1.7(Max)
