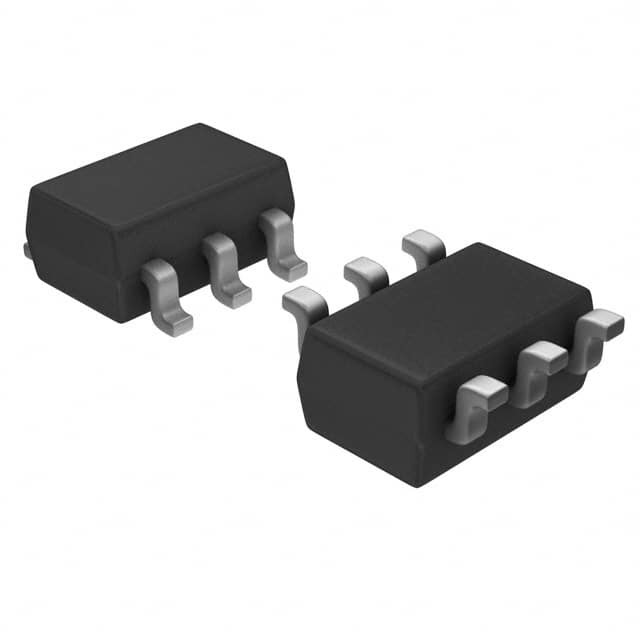

HMC545ETR

SKU: 19016

Manufacturer: Analog Devices

RF Switch SPDT 0MHz to 3GHz 20dB Automotive 6-Pin SOT-26 T/R

3920 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Switch Type	SPDT
Switch Configuration	Single SPDT
Number of Switches	1
Switching Speed (ns)	90(Typ)
Frequency Band (MHz)	0 to 3000
Maximum Frequency (MHz)	3000
Minimum Isolation Voltage (dB)	20
Maximum Insertion Loss (dB)	0.7
Typical Input 1dB Compressed Power (dBm)	36
Technology	CMOS/TTL
High Control Voltage (V)	3 to 8
Maximum Power Dissipation (mW)	230
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-26
Pin Count	6
Standard Package Method	SOT-26
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	3(Max)
Package Width	1.7(Max)
PCB changed	6
