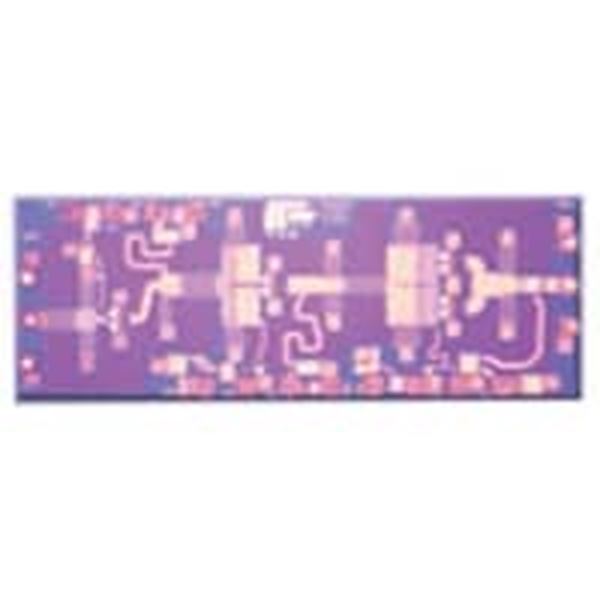

HMC-APH403

SKU: 30423

Manufacturer: Analog Devices

RF Amp Single Power Amp 45GHz 5.5V 8-Pin Die Tray

3220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.b.2.f
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	45000
Typical Power Gain (dB)	21@45000MHz
Typical Output Power (dBm)	23@45000MHz
Typical Output Intercept Point (dBm)	32@45000MHz
Maximum Input Return Loss (dB)	6(Typ)@45000MHz
Maximum Output Return Loss (dB)	7(Typ)@45000MHz
Operating Supply Voltage-Max (V)	5.5
Typical Dual Supply Voltage (V)	5
Maximum Dual Supply Voltage (V)	5.5
Maximum Supply Current (mA)	475(Typ)@5V
Power Supply Type	Triple
Packing Method	Tray
Original Package	Die
Pin Count	8
Standard Package Method	Die
Package Height	0.1
Package Length	2.76
Package Width	1.03
