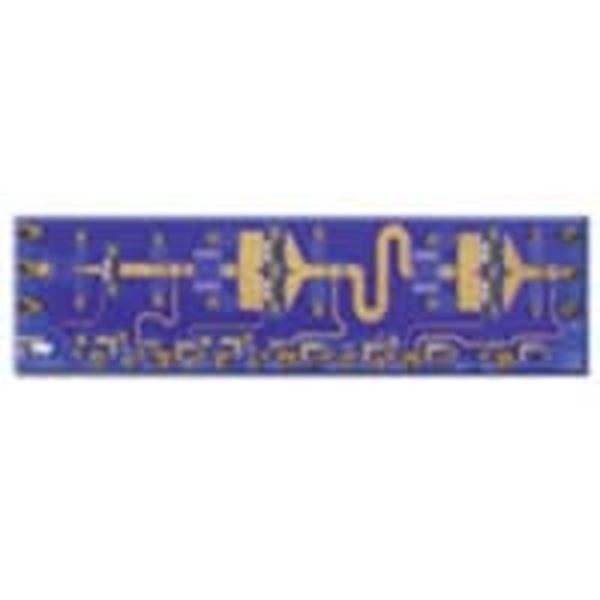

HMC-APH510

SKU: 122374

Manufacturer: Analog Devices

RF Amp Single Power Amp 40GHz 5.5V 9-Pin Die Tray

3010 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001b.2.d.
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	No
PPAP	No
Manufacturer Type	Power Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	40000
Typical Power Gain (dB)	20@40000MHz
Typical Output Power (dBm)	26@40000MHz
Typical Output Intercept Point (dBm)	35@40000MHz
Maximum Input Return Loss (dB)	16(Typ)@40000MHz
Maximum Output Return Loss (dB)	7(Typ)@40000MHz
Operating Supply Voltage-Max (V)	5.5
Typical Dual Supply Voltage (V)	5
Maximum Dual Supply Voltage (V)	5.5
Maximum Supply Current (mA)	640(Typ)@5V
Power Supply Type	Triple
Packing Method	Tray
Original Package	Die
Pin Count	9
Standard Package Method	Die
Package Height	0.1
Package Length	3.76
Package Width	0.92
