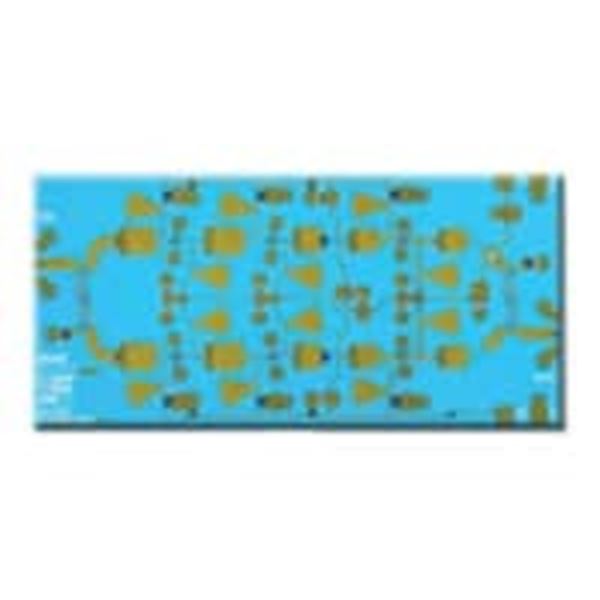

HMC-ALH509

SKU: 82580

Manufacturer: Analog Devices

RF Amp Single LNA 86GHz 3V Automotive 4-Pin Die Tray

2630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.33.00.01
Automotive	Unknown
PPAP	Unknown
Manufacturer Type	Low Noise Amplifier
Number of Channels per Chip	1
Maximum Operating Frequency (MHz)	86000
Typical Power Gain (dB)	14@86000MHz
Typical Output Power (dBm)	7@86000MHz
Maximum Input Return Loss (dB)	14(Typ)@86000MHz
Maximum Output Return Loss (dB)	10(Typ)@86000MHz
Typical Noise Figure (dB)	5@86000MHz
Operating Supply Voltage-Max (V)	3
Typical Single Supply Voltage (V)	2
Maximum Single Supply Voltage (V)	3
Maximum Supply Current (mA)	50(Typ)@2V
Power Supply Type	Single
Operating Temperature-Min	-55
Operating Temperature-Max	85
Packing Method	Tray
Original Package	Die
Pin Count	4
Standard Package Method	Die
Package Height	0.1
Package Length	3.2
Package Width	1.6
