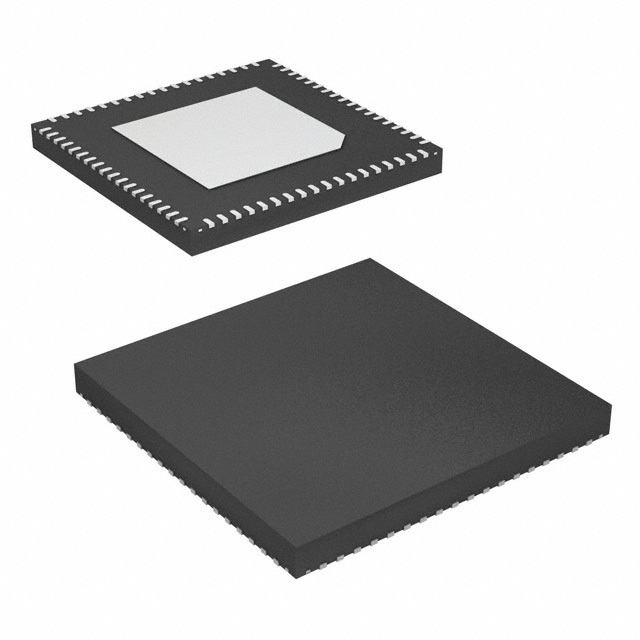

AD9694BCPZ-500

SKU: 86507

Manufacturer: Analog Devices

4-Channel Quad ADC Pipelined 500Msps 14-bit JESD204B 72-Pin LFCSP EP Tray

2410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.4.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	4
Number of Input Channels	4
Sampling Rate	500Msps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Voltage Supply Source	Analog and Digital
Input Voltage	1.8Vp-p
Minimum Single Supply Voltage (V)	0.95/1.71/2.44
Typical Single Supply Voltage (V)	0.975/1.8/2.5
Maximum Single Supply Voltage (V)	1/1.89/2.56
Typical Power Dissipation (mW)	1660
Maximum Power Dissipation (mW)	2070
Integral Nonlinearity Error	±5.1LSB
Full Scale Error	±5%FSR
Signal to Noise Ratio	68.4dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tray
Original Package	LFCSP EP
Pin Count	72
Standard Package Method	CSP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	10
Package Width	10
PCB changed	72
