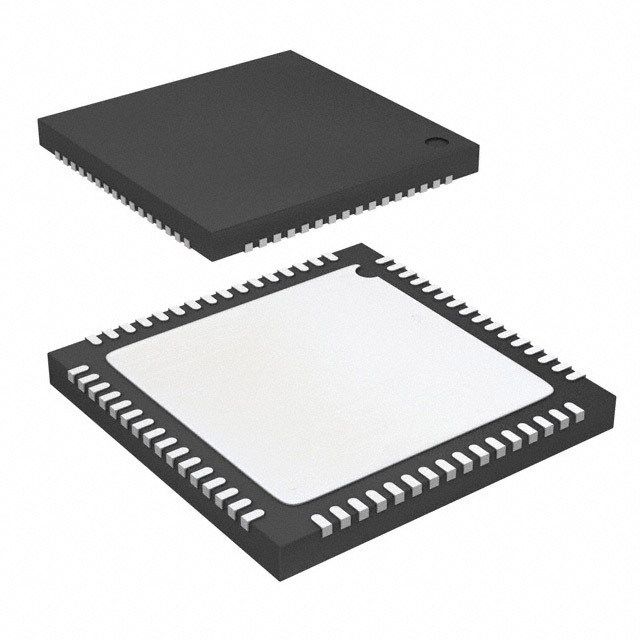

AD9695BCPZ-1300

SKU: 53082

Manufacturer: Analog Devices

2-Channel Dual ADC Pipelined 1.3Gsps 14-bit JESD204B 64-Pin LFCSP EP Tray

470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001a.5.a.4.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Pipelined
Resolution	14bit
Number of ADCs	2
Number of Input Channels	2
Sampling Rate	1.3Gsps
Digital Interface Type	JESD204B
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	Internal
Voltage Supply Source	Analog and Digital
Input Voltage	1.59Vp-p
Minimum Single Supply Voltage (V)	0.93/1.71/2.44
Typical Single Supply Voltage (V)	0.95/1.8/2.5
Maximum Single Supply Voltage (V)	0.98/1.89/2.56
Maximum Supply Current	450(Typ)
Typical Power Dissipation (mW)	1600
Maximum Power Dissipation (mW)	2000
Integral Nonlinearity Error	-7/5LSB
Full Scale Error	±2.9%FSR
Signal to Noise Ratio	67.5dBFS(Typ)
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LFCSP EP
Pin Count	64
Terminal Form	Surface Mount
Package Height	0.73
Package Length	9
Package Width	9
