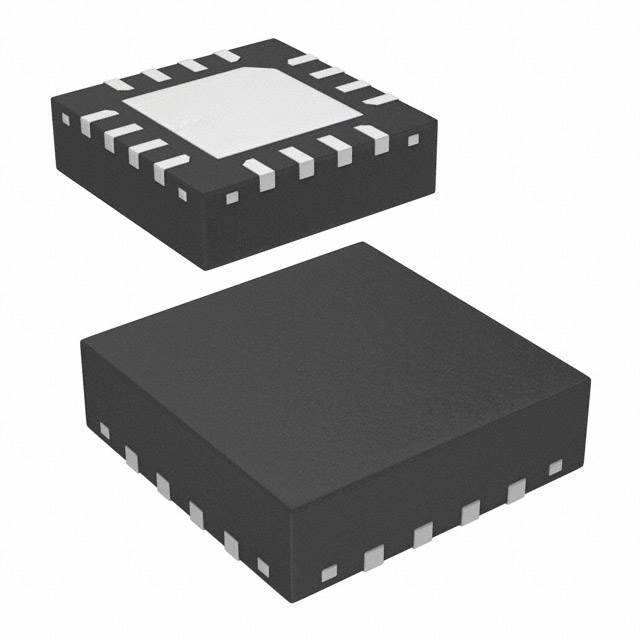

    AD8567ACPZ-REEL

    SKU: 31684
    Manufacturer: Analog Devices
    Op Amp Quad GP R-R I/O 16V Automotive 16-Pin LFCSP EP T/R
    8060 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.33.00.01
    Automotive No
    PPAP No
    Type General Purpose Amplifier
    Manufacturer Type General Purpose Amplifier
    Number of Channels per Chip 4
    Rail to Rail Rail to Rail Input/Output
    Process Technology Bipolar
    Maximum Input Offset Voltage (mV) 10@16V
    Minimum Single Supply Voltage (V) 4.5
    Typical Single Supply Voltage (V) 5
    Maximum Single Supply Voltage (V) 16
    Maximum Input Offset Current (uA) 0.08@16V
    Maximum Input Bias Current (uA) 0.6@16V
    Maximum Quiescent Current (mA) 3.4@16V
    Typical Output Current (mA) 35@16V
    Power Supply Type Single
    Typical Slew Rate (V/us) 6@16V
    Typical Input Noise Voltage Density (nV/rtHz) 26@16V
    Typical Voltage Gain (dB) 80
    Typical Noninverting Input Current Noise Density (pA/rtHz) 0.8@16V
    Minimum PSRR (dB) 70
    Minimum CMRR (dB) 54
    Minimum CMRR Range (dB) 50 to 60
    Typical Gain Bandwidth Product (MHz) 5
    Shut Down Support No
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tape and Reel
    Pin Count 16
    Standard Package Method CSP
    Original Package LFCSP EP
    Terminal Form Surface Mount
    Package Height 0.73
    Package Length 4
    Package Width 4
    PCB changed 16
