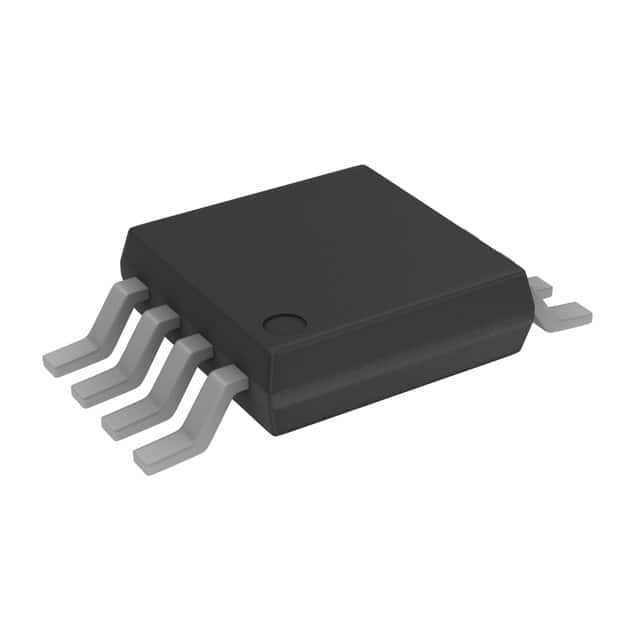

AD8566ARMZ-REEL

SKU: 24592

Manufacturer: Analog Devices

Op Amp Dual GP R-R I/O 16V Automotive 8-Pin MSOP T/R

7210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	General Purpose Amplifier
Manufacturer Type	General Purpose Amplifier
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Input/Output
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	10@16V
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	16
Typical Low Level Output Voltage (V)	0.95
Typical High Level Output Voltage (V)	15.95
Maximum Input Offset Current (uA)	0.08@16V
Typical Input Bias Current (uA)	0.8@16V
Maximum Input Bias Current (uA)	0.6@16V
Maximum Quiescent Current (mA)	1.7@16V
Typical Output Current (mA)	35@16V
Power Supply Type	Single
Typical Slew Rate (V/us)	6@16V
Typical Input Noise Voltage Density (nV/rtHz)	26@16V
Input Offset Voltage Drift (uV/°C)	5(Typ)
Typical Voltage Gain (dB)	80
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.8@16V
Minimum PSRR (dB)	70
Minimum CMRR (dB)	54
Minimum CMRR Range (dB)	50 to 60
Typical Gain Bandwidth Product (MHz)	5
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	MSOP
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
