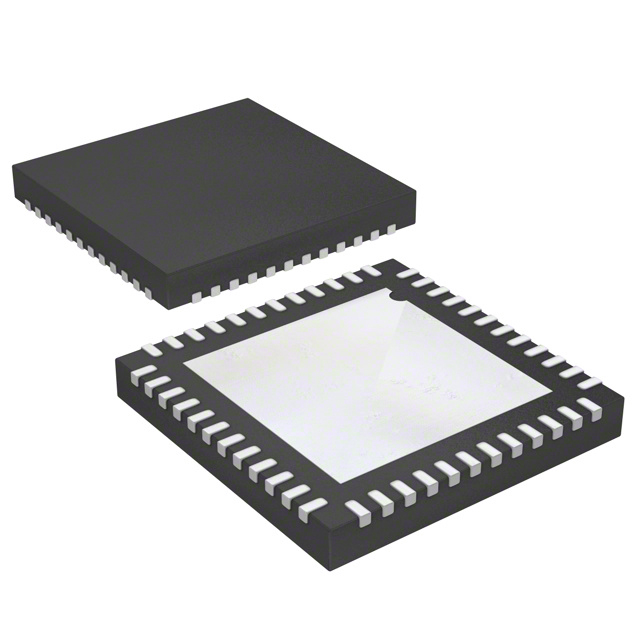

AD7610BCPZ

SKU: 86482

Manufacturer: Analog Devices

1-Channel Single ADC SAR 250ksps 16-bit Parallel/Serial 48-Pin LFCSP EP Tray

1270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	16bit
Number of ADCs	1
Number of Input Channels	1
Sampling Rate	250ksps
Digital Interface Type	Parallel
Input Type	Voltage
Input Signal Type	Single-Ended
Voltage Reference	External
Polarity of Input Voltage	Unipolar
Voltage Supply Source	Dual
Input Voltage	5V/10V
Minimum Dual Supply Voltage (V)	0/7/4.75
Typical Dual Supply Voltage (V)	±15/5
Maximum Dual Supply Voltage (V)	±15.75/5.25
Typical Power Dissipation (mW)	90
Maximum Power Dissipation (mW)	110
Integral Nonlinearity Error	±1.5LSB
Full Scale Error	70LSB
Signal to Noise Ratio	94dB(Typ)
No Missing Codes (bit)	16
Sample and Hold	Yes
Single-Ended Input	Yes
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Pin Count	48
Standard Package Method	CSP
Original Package	LFCSP EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	7
Package Width	7
PCB changed	48
