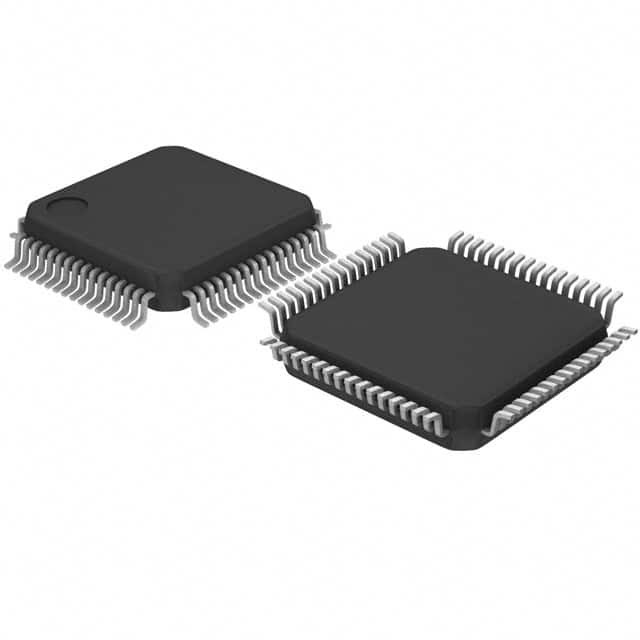

AD7609BSTZ

SKU: 102310

Manufacturer: Analog Devices

8-Channel Single ADC SAR 200ksps 18-bit Parallel/Serial 64-Pin LQFP Tray

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	SAR
Resolution	18bit
Number of ADCs	1
Number of Input Channels	8
Sampling Rate	200ksps
Digital Interface Type	Serial (SPI, QSPI, Microwire)
Input Type	Voltage
Input Signal Type	Differential
Voltage Reference	External
Polarity of Input Voltage	Bipolar
Voltage Supply Source	Single
Input Voltage	±10V/±20V
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Typical Power Dissipation (mW)	100
Maximum Power Dissipation (mW)	157
Integral Nonlinearity Error	±7.5LSB
Full Scale Error	±140LSB
Signal to Noise Ratio	101dB(Typ)
No Missing Codes (bit)	18
Sample and Hold	Yes
Single-Ended Input	No
Digital Supply Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	LQFP
Pin Count	64
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	10
Package Width	10
PCB changed	64
