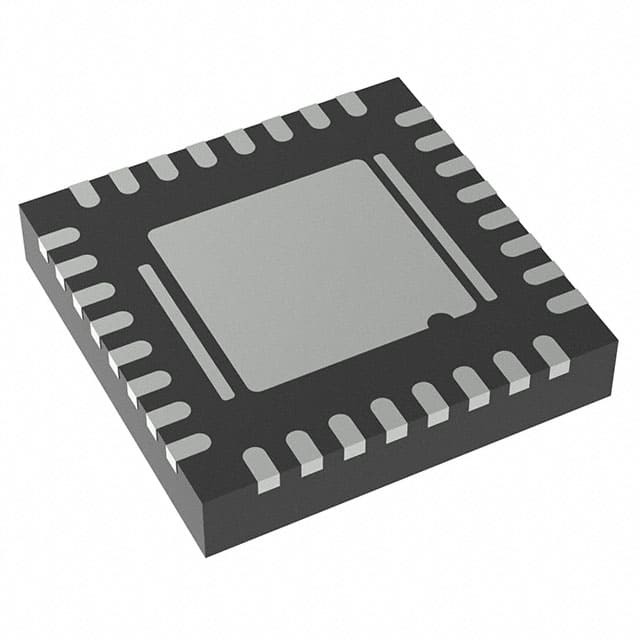

AD5766BCPZ-RL7

SKU: 136058

Manufacturer: Analog Devices

DAC 16-CH Resistor-String 16-bit 40-Pin LFCSP EP T/R

1420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Resistor-String
Resolution	16bit
Number of DAC Channels	16
Number of Outputs per Chip	16
Maximum Settling Time (us)	10(Typ)
Digital Interface Type	Serial (4-Wire, SPI, QSPI, Microwire)
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.97
Typical Single Supply Voltage (V)	3.3
Maximum Single Supply Voltage (V)	3.6
Power Supply Type	Analog and Digital
Integral Nonlinearity Error	±16LSB
Full Scale Error	±0.9%FSR
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Supplier Temperature Grade	Industrial
Original Package	LFCSP EP
Pin Count	40
Terminal Form	Surface Mount
Package Height	0.73
Package Length	6
Package Width	6
