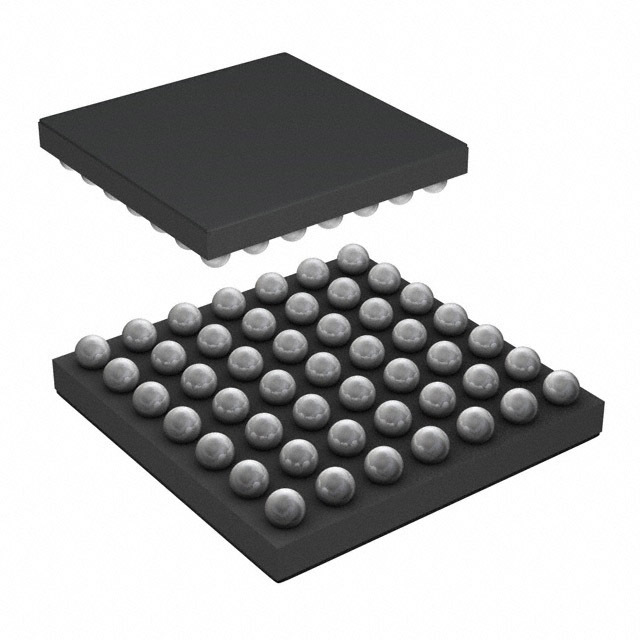

AD5770RBCBZ-RL7

SKU: 72358

Manufacturer: Analog Devices

DAC 6-CH Segment 14-bit 49-Pin WLCSP T/R

1530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Segment
Resolution	14bit
Number of DAC Channels	6
Number of Outputs per Chip	6
Maximum Settling Time (us)	13(Typ)
Digital Interface Type	Serial (4-Wire, SPI, QSPI, Microwire)
Output Type	Current
Output Polarity	Bipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	2.9
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.5
Power Supply Type	Analog and Digital
Integral Nonlinearity Error	±6.5LSB
Full Scale Error	±1.3%FSR
Digital Supply Support	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Tape and Reel
Original Package	WLCSP
Pin Count	49
Terminal Form	Surface Mount
Package Height	0.36
Package Length	4.04
Package Width	4.04
