AD558JN

SKU: 109301

Manufacturer: Analog Devices

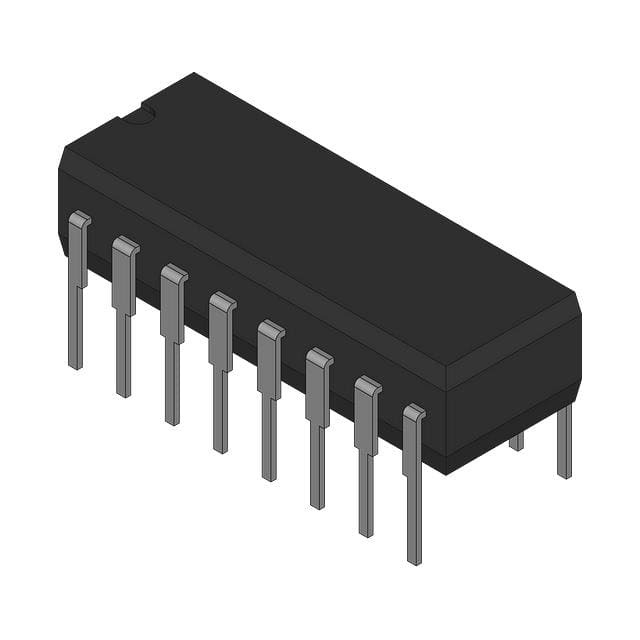

DAC 1-CH R-2R/Current Steering 8-bit 16-Pin PDIP N Tube

310 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	Current Steering
Resolution	8bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	3
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	375
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±2.5LSB
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Original Package	PDIP N
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	19.18
Package Width	6.35
PCB changed	16
