AD558JP

SKU: 102284

Manufacturer: Analog Devices

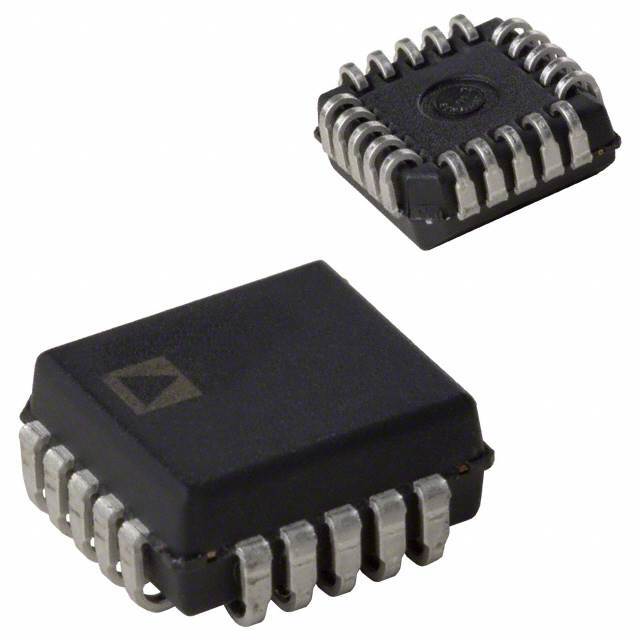

DAC 1-CH R-2R/Current Steering 8-bit 20-Pin PLCC Tube

120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	8bit
Number of DAC Channels	1
Number of Outputs per Chip	1
Maximum Settling Time (us)	3
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Unipolar
Voltage Reference	Internal
Minimum Single Supply Voltage (V)	4.5
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	16.5
Power Supply Type	Single
Maximum Power Dissipation (mW)	375
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±2.5LSB
Digital Supply Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	20
Standard Package Method	LCC
Original Package	PLCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
