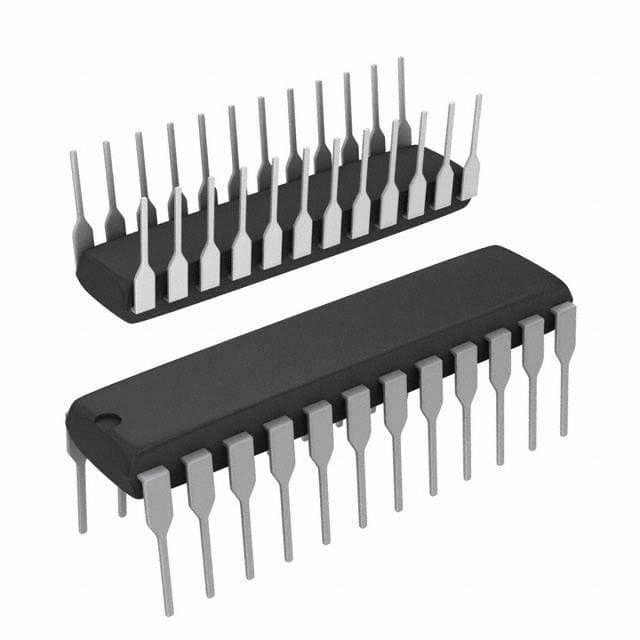

5962-9078501MLA

SKU: 44052

Manufacturer: Analog Devices

DAC 2-CH R-2R 12-bit 24-Pin CDIP Tube

1720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.2.c
Part Status	Active
HTS	8544.42.20.00
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Converter Type	General Purpose
Architecture	R-2R
Resolution	12bit
Number of DAC Channels	2
Number of Outputs per Chip	2
Digital Interface Type	Parallel
Output Type	Voltage
Output Polarity	Bipolar
Voltage Reference	External
Minimum Single Supply Voltage (V)	11.4
Typical Single Supply Voltage (V)	15
Maximum Single Supply Voltage (V)	15.75
Minimum Dual Supply Voltage (V)	±11.4
Typical Dual Supply Voltage (V)	±15
Maximum Dual Supply Voltage (V)	±15.75
Power Supply Type	Dual
Maximum Power Dissipation (mW)	1000
Integral Nonlinearity Error	±0.5LSB
Full Scale Error	±6LSB
Digital Supply Support	No
Operating Temperature-Min	-55
Operating Temperature-Max	125
Packing Method	Tube
Supplier Temperature Grade	Military
Original Package	CDIP
Pin Count	24
Standard Package Method	DIP
Terminal Form	Through Hole
PCB changed	24
